Silicon TIR Lens

  • 1. Model No.: YJ-81

  • 2. Material: Ultra transparent optical silicon

  • 3. Feature: UV resistance, no yellowing silicon TIR lens

  • 4. Technology: LSR Injection Molding

  • 5. Light Transmittance: 92%

  • 6. Temperature Resistance: -40 to 150℃

  • 7. UV Resistance: Double 85 Aging Testing, 5000 hours, no changing

Product Description

LSR Injection Molding UV Resistance& High Temperature Resistance Silicon TIR Lens for LED Lighting

Silicon TIR Lens is made of optically clear LSR liquid silicon, processed by liquid injection molding in class 100,000 clean production workshop, our factory has been the top manufacturer of silicone molding optical TIR lenses in China.

LSR Injection Molding TIR Silicon Lens

Product Specification

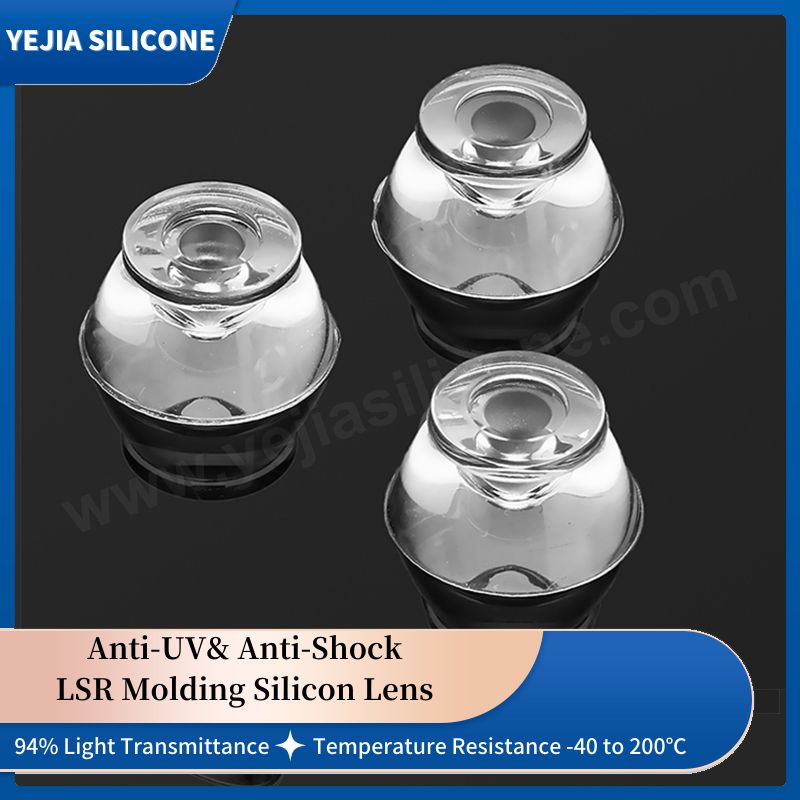

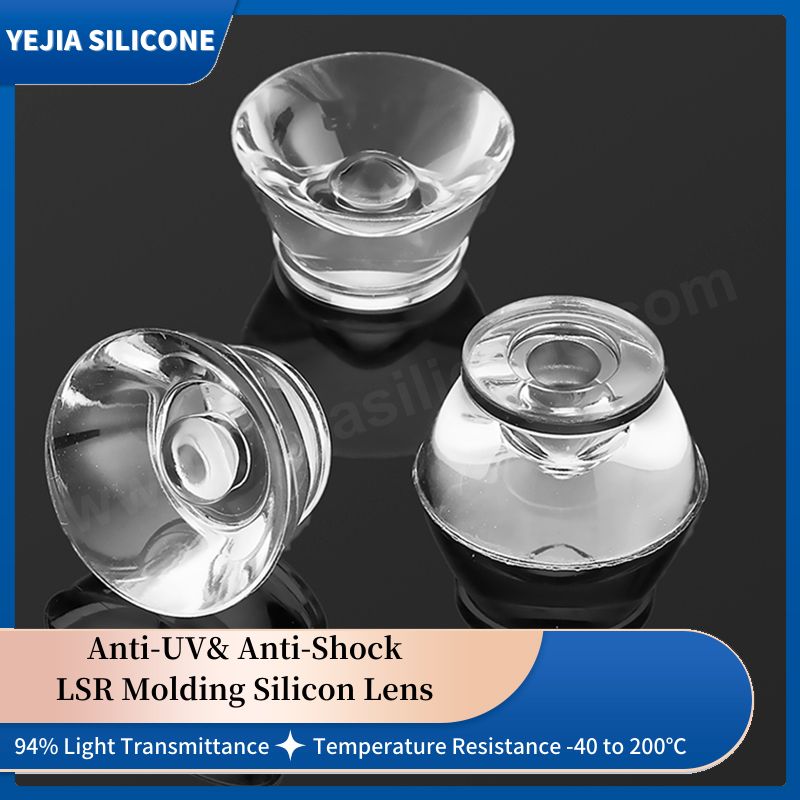

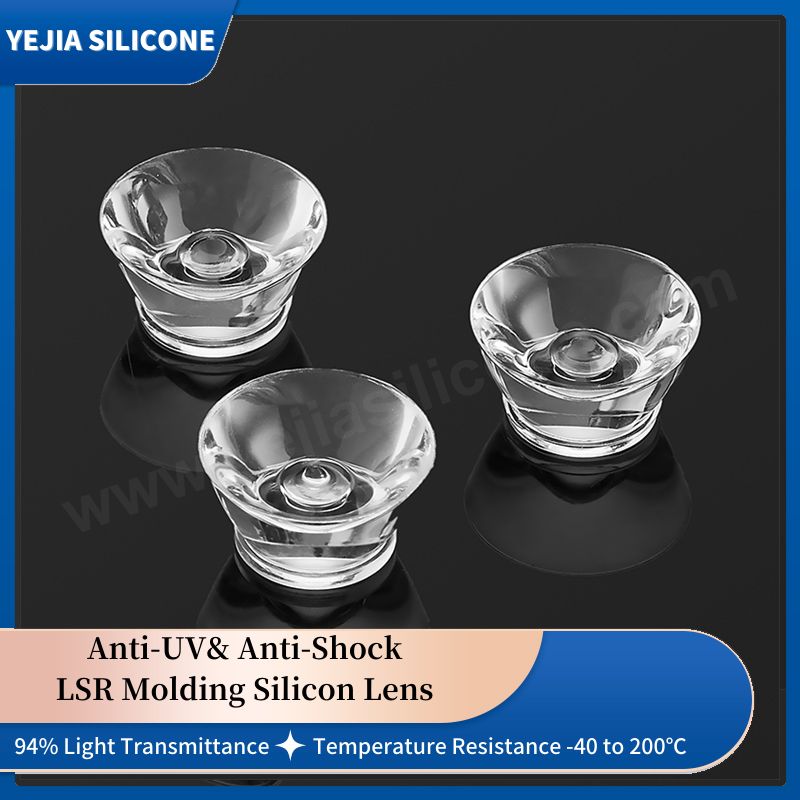

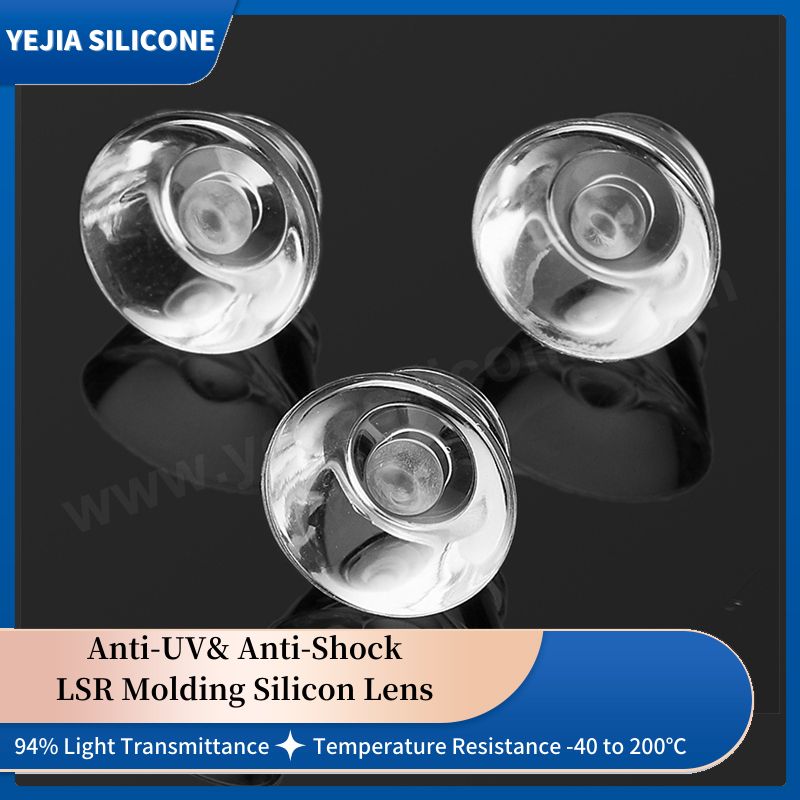

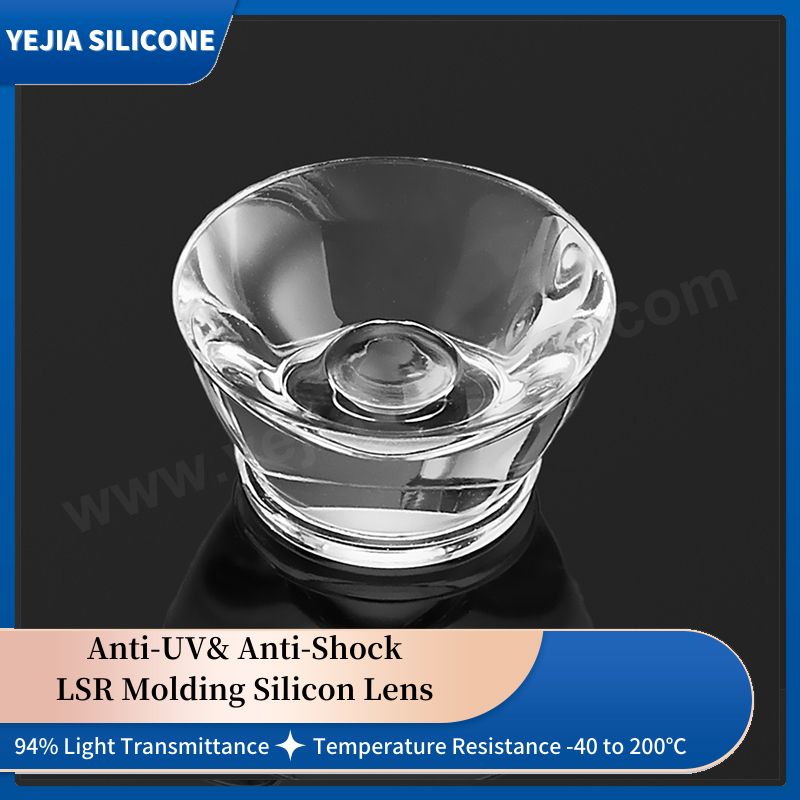

This optical silicon TIR lens is made of ultra transparent imported optical liquid silicone, processed by LSR injection molding, with excellent performance in demanding harsh environments, such as, high heat, high humidity and UV exposure. TIR lenses, which means total reflection technology+ inter-media action, each light ray is utilized in a controlled manner, generally without secondary light spots and with a good looking light pattern.

Item No.: YJ-81
Item Name: LSR Injection Molding Silicon TIR Lens
Material: Momentive Optical Silicone
Hardness: 80 Shore A
Color: Transparent

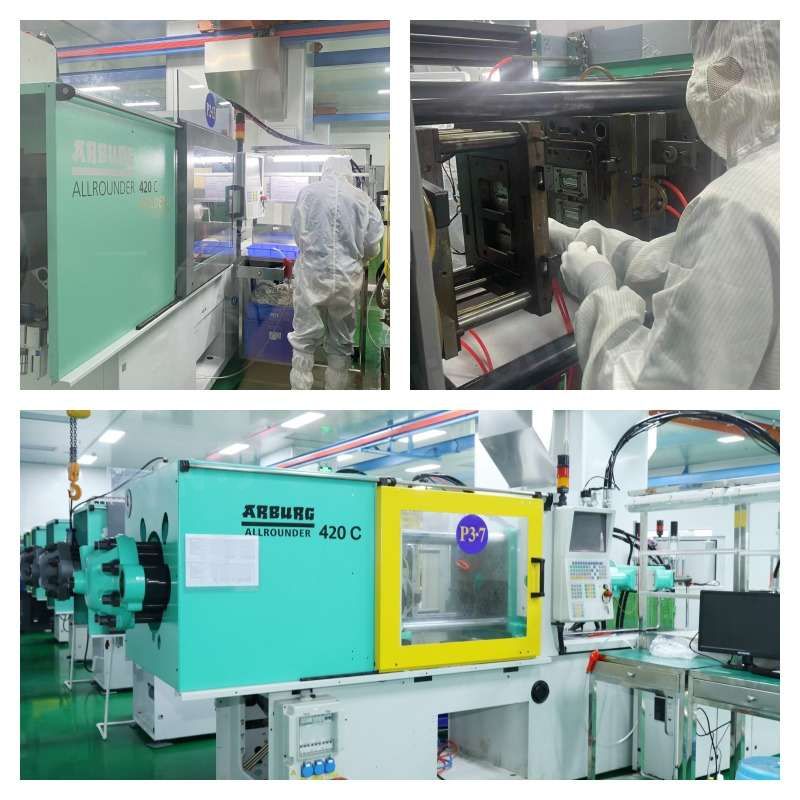

Machine: 160T ARBURG Horizontal LSR Injection Molding Machine
Process:LSR Injection Molding- Deflashing- Inspection- Post Curing- Dust Free- Packing- Shipping
Application: LED Lighting

TIR Lens uses the principle of total reflection to collect and process light. It is designed to collect and reflect all the side light in front of the lens in a penetrating way, while the tapered surface collects and reflects all the side light, and the overlapping of these two types of light results in a perfect light utilization and a beautiful spot effect. The efficiency of TIR lens can reach over 90%, with the advantages of high light energy utilization, low light loss, small light collection area and good uniformity.

Silicon TIR Lens

Silicon TIR Lens Optical Performance

The optical liquid silicone has low refractive ratio at 1.41 and high light transmittance of 92%, with great flexibility and low viscosity, the silicon TIR lens can achieve micro-structure and under-cut designs. With characteristics of anti-yellowing, UV resistance and temperature resistance, the optical LSR TIR lens keeps no change after 5000 hours aging testing, and the silicon TIR lens can work under temperature over 200 degrees Celsius. With lower density than PC, PMMA and glass, the silicon tir lens weight is way much lighter than other optical lenses.

Silicon TIR Lens

Optical Properties

Dowcorning MS4002

Silicone

Momentive LSR7180

Silicone

Wacker LR7601/80

Silicone

Light Transmittance (%)

94

94

94

Refractive ratio

1.41

1.41

1.41

Haze

-

<1

-

Abbe

48

50

50

Yellowness Index

-

<1

-

Silicon TIR Lens


Our Advantage

Yejia silicone, as the professional manufacturer of silicon lenses, has produced liquid silicone injection molding and overmolding products for over 13 years, with 5 japanese engineers focusing on mold design and mold making for over 30 years, and word class mold making and inspection equipments, for now we've established the cooperation with many Fortune 500 enterprises. For custom silicon lens, welcome to contact us.

LSR TIR Lens Mold Making Equipment

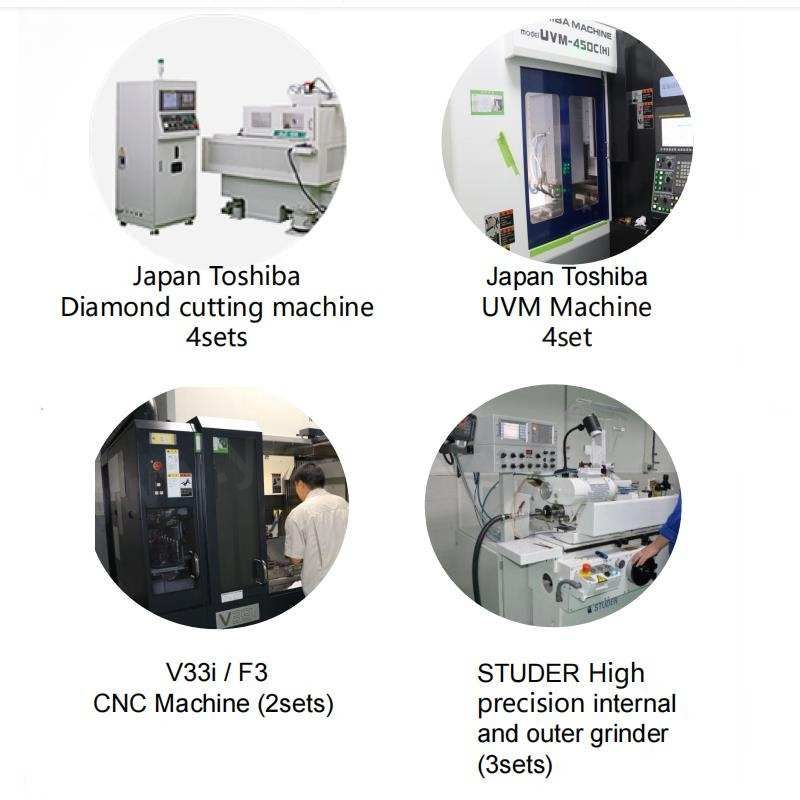

Core Mold Making Equipment

S.N.

Mold Making& Inspection Equipment

Origin

Qty.

1

Ultra Precision Aspheric Machine

Japan

4

2

Universal Cylindrical Grinder

Switzerland

3

3

CNC EDM Wire Cutting Machine

Japan

3

4

Precision Form Grinder A

Japan

1

5

Precision Form Grinder B

Japan

1

6

High Precision Surface Grinder

Japan

1

7

High Precision Vertical CNC Machine

Japan

2

8

Vertical CNC Machine

Japan

1

9

Mirror Spark Machine

Japan

1

10

Surface Treatment Equipment

Switzerland

2

11

Polishing Machine

Japan

3

12

Ultra Precision Inner Diameter Processing Machine

Japan

1

13

TATUNG-OKUMA Grinder

Taiwan

1

14

Okamoto Grinder

Japan

1


Silicon TIR Lens


Class 100,000 Clean Silicon Lens Production Workshop

Our factory has set up class 100,000 clean production workshop for optical silicon lenses and class 10,000 inspection room for light performance tests.

Silicon TIR Lens

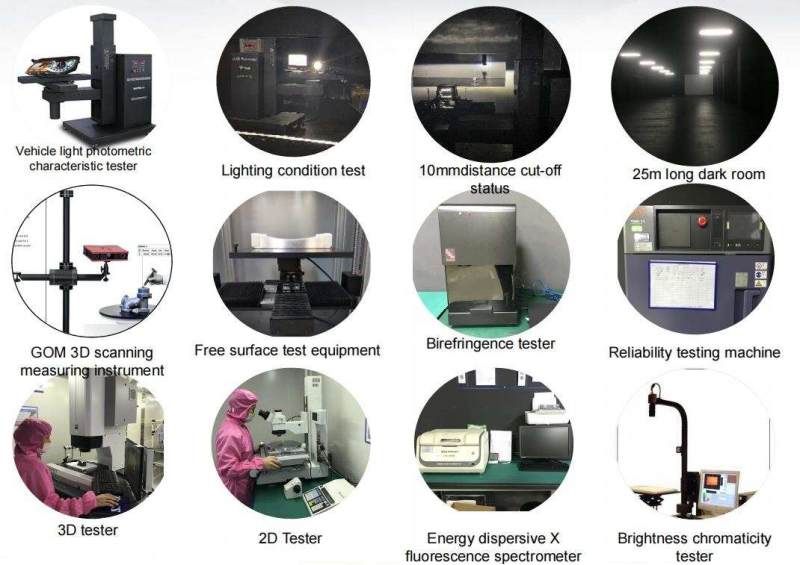

Quality Contorl

Not only we have many precision inspection equipment, but also our factory has been certified by ISO9001, ISO14001, ISO13485& IATF16949.

Silicon TIR Lens

FAQ

Q: What's silicone lens?


Silicon lens is a kind of optical lens made of liquid optical silicone, processed by LSR injection molding. The silicon TIR lens can be used in industrial lighting, indoor and outdoor LED lighting, welcome custom LSR injection molding optical TIR lenses.

Q: What's the advantage of silicon TIR lens?


A: The silicon TIR lenses advantages are as below:


1. Temperature Resistance: -40 to 200°C, resistant to sudden cold and hot shocks.

2. Flexible material: Not easy to burst, excellent explosion-proof performance.

3. Non-toxic, low density, stable performance, up to 92% light transmittance and excellent weather resistance.

4. Almost residual stress-free, good elasticity, ensuring stable optical properties.

Q: Can you do the product design for silicone TIR lens?


A: We regret that we mainly do OEM designs and do not have the ability to design optical lenses for now.

Q: Do you have clean production room?


A: Yes, for optical lenses, we have set up various class 100,000 clean production workshops, and class 10,000 inspection room for light performance tests.

Q: Can I visit your factory?


A: Yes, highly welcome to visit us, contact us to arrange the visiting.
