Over-molded 32 Light Guides Silicon Optics

  • 1. Model No.: YJ-83

  • 2. Product Name: 32 Light Guides Silicon Optics

  • 3. Material: Dow Corning MS4002+ PBT

  • 4. Technology: LSR Overmolding Injection (Secondary Molding)

  • 5. Feature: Shock Resistance, Easy to Assembly

Product Description

Enhance Your Optical Performance with LSR Overmolded Silicone Optics: 32 Light Guides Silicon Optics Manufacturer

Silicon optics are preferred in LED lighting due to their high thermal stability, optical clarity, and mechanical strength. LSR overmolding further improves these benefits by providing excellent thermal stability, enhancing light transmission, and reducing light scattering. LSR overmolding enhances the durability and environmental resistance of the components, while also improving their optical performance. LSR overmolded silicon optics is widely used in various LED lighting applications, including automotive lighting, street lighting, architectural lighting, and indoor lighting. LSR overmolding injection helps improve the efficiency, performance, and longevity of LED lighting systems.Over-molded 32 Light Guides Silicon Optics

Product Information

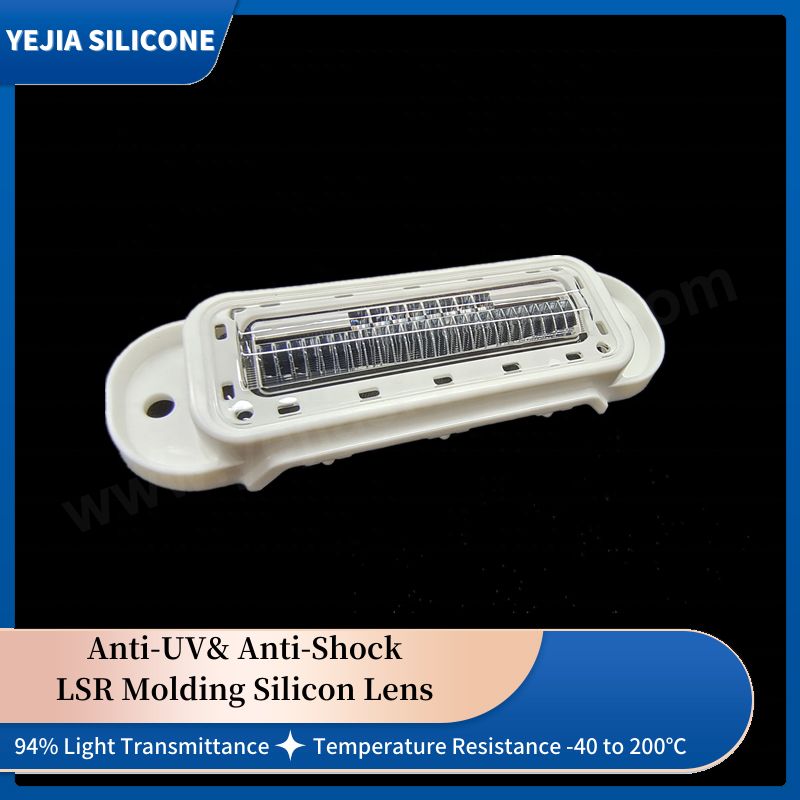

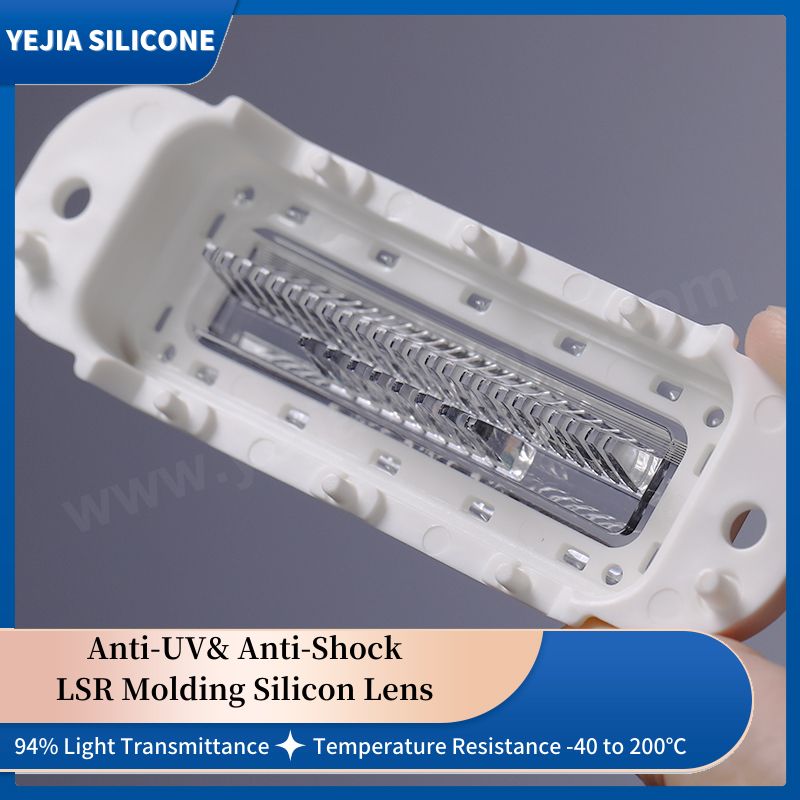

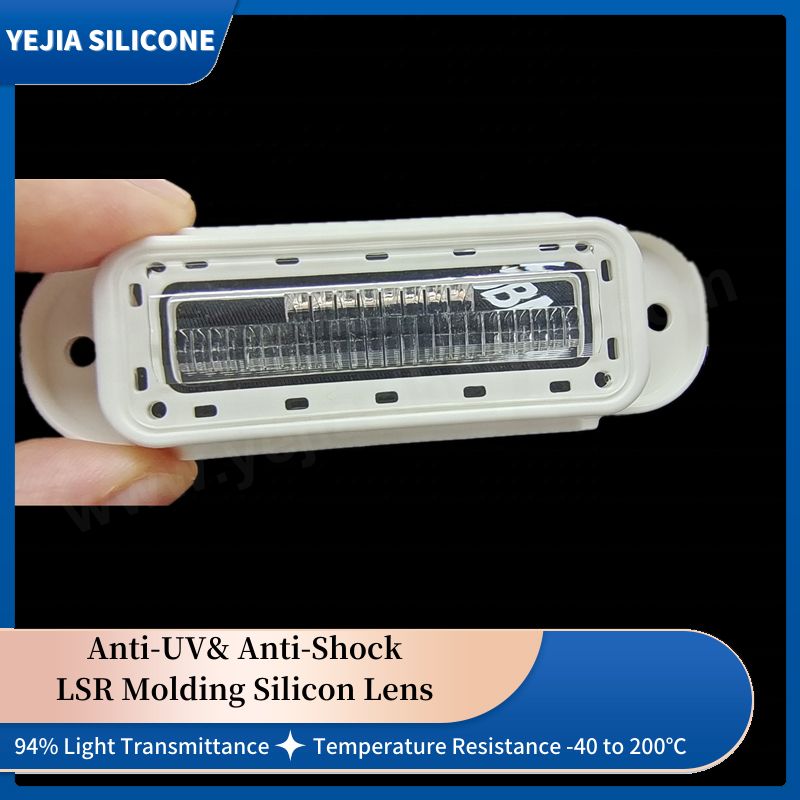

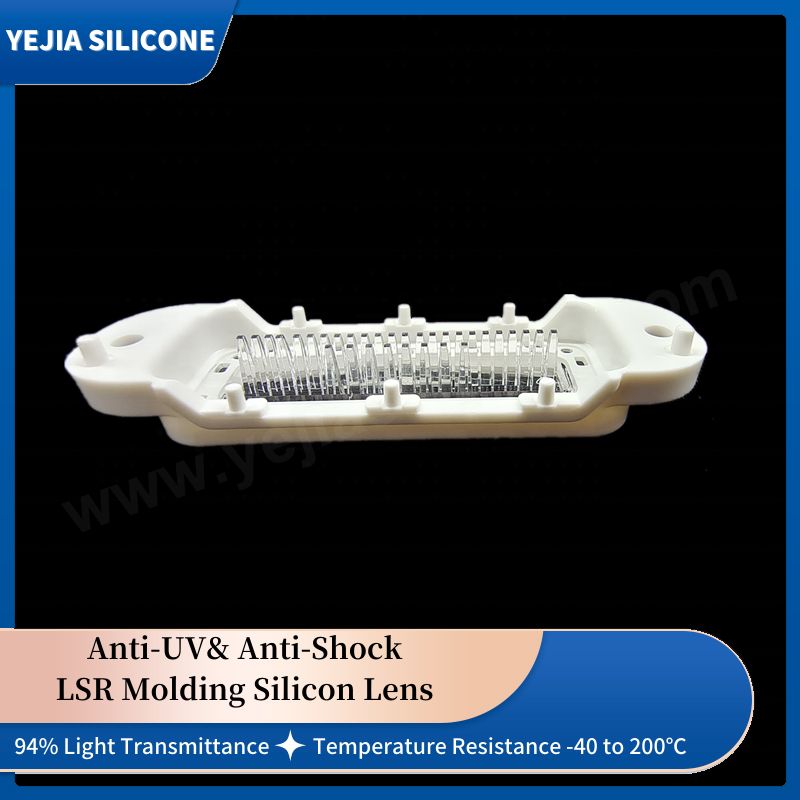

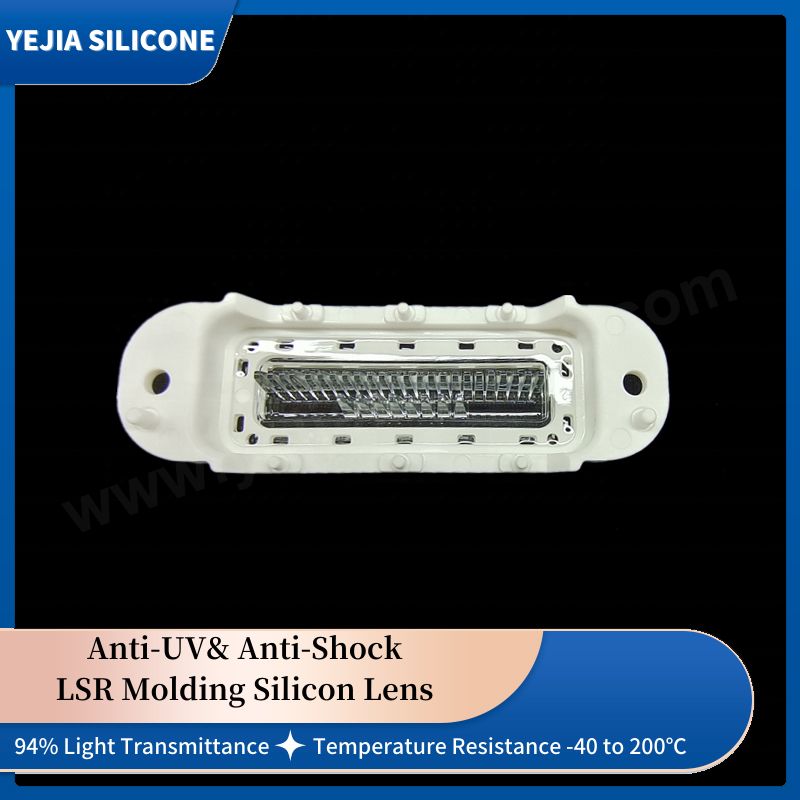

Over-molded 32 Light Guides Silicon Optics

Model No.: YJ-83
Product Name: 32 Light Guides Silicon Optics
Material: Optical Liquid Silicone+ PBT (Plastic)
Product Size: 81*22*15mm
Hardness: 80 Shore A
Process: LSR Over-Molding Injection
Optical Surface Finish: SPI A1
Light Transmittance: 94%
Refractive Index: 1.41
Temperature Resistance: -40 to 150℃
Applications: Hongqi HS9 High Beam& Low Beam Headlamp

Benefits of Light Guides Silicon Optics

LSR overmolded silicone optics offer a range of benefits for manufacturers looking to produce high-quality optical components. Their ability to produce complex shapes and geometries, resistance to harsh environments, customizability, and cost-effectiveness make them an attractive option for a wide range of applications. As such, they are likely to remain a popular choice for manufacturers in the years to come.

- Efficient Light Transmission: Light guide silicon optics are designed to efficiently transmit light from a source to the desired location, such as a display or indicator. This helps improve the brightness and clarity of the light output.

- Durability: Unlike other materials, such as glass or plastic, LSR overmolded silicone optics are resistant to scratches, cracks, and other forms of damage. This makes them ideal for use in harsh environments or applications where the component will be subject to frequent wear and tear.

- Versatility: Light guide silicon optics can be designed in various shapes and sizes to meet specific lighting requirements. This allows for the creation of lenses, light pipes, and other optical components with precise dimensions and tolerances. Additionally, the LSR material used in overmolding is highly transparent and has excellent optical properties, making it an ideal choice for applications that require high clarity and light transmission.

- Energy efficiency: Light guide silicon optics can help improve the energy efficiency of lighting systems by reducing the amount of light lost through reflection or absorption.

- Cost-effective: The LSR overmolding process allows for the creation of complex components in a single step, reducing the need for additional assembly or finishing processes. This can result in significant cost savings for manufacturers, particularly for high-volume production runs.

Over-molded 32 Light Guides Silicon Optics

LSR Overmolded Silicon Optics Production Process

The production process for LSR overmolded silicon optics requires specialized equipment and expertise to ensure high-quality and consistent results. There are many manufacturers of LSR overmolded silicone optics, but not all of them are created equal. When choosing a manufacturer, it is important to consider several factors, including the quality of the materials used, the expertise of the manufacturer, and the level of customer service provided.

YEJIA has been in silicone molding for over 20 years and has a proven track record of producing high-quality silicon optics. We use only the highest quality optical silicone materials and employ a team of experts who are dedicated to ensuring that each component meets the strictest standards of quality and precision. If you're looking for custom light guide silicon optics, YEJIA is an excellent choice.

Over-molded 32 Light Guides Silicon Optics

People Also Ask

Q: What is silicon optics?

A: Silicon optics refers to a kind of optical lenses made from liquid silicone rubber material and used for LED lighting applications.

Q: What are some factors to consider when designing LSR overmolded silicon optics for LED lighting?

A: Factors to consider include the shape and size of the component, the desired light distribution pattern, the thermal requirements of the application, and the optical performance requirements.

Q: How does LSR overmolding help improve the efficiency and longevity of LED lighting systems?

A: LSR overmolding helps reduce light scattering and improve light transmission, which can increase the efficiency of LED lighting systems.
