Cross Slit Valves
1. Item Name: Silicone Cross Slit Valves
2. Material: Food Grade
3. Process: LSR Molding
4. Feature: Leak-proof Dispensing
5. Size: 8mm/ 9.8mm/ 10.5mm/ 12.85mm/ 13mm/ 16.5mm

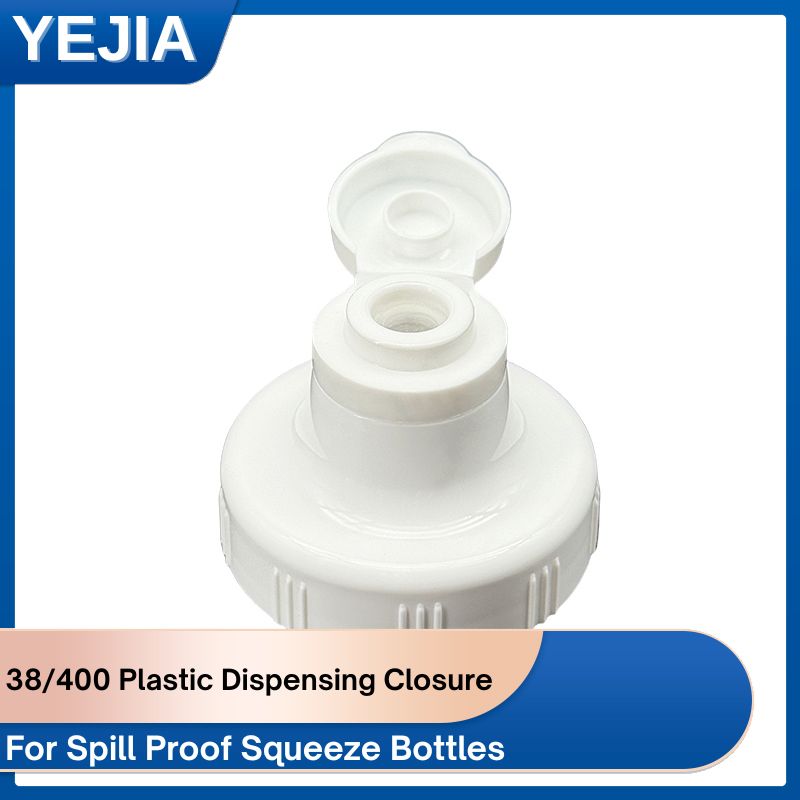

6. Application: Food& Beverage Dispensing Closures
Product Description
Silicone Rubber Cross Slit Valves- Leak-proof Dispensing Solutions
Cross slit valves are precision-molded silicone rubber valves featuring a cross-shaped slit on the sealing surface. These valves automatically open under pressure to allow controlled fluid dispensing and instantly reseal when pressure is released, preventing leaks or contamination. They can be made from food-grade silicone, medical-grade silicone, fluorosilicone, NBR, or other high-elasticity and weather-resistant rubber materials.
Applications of Cross Slit Valves

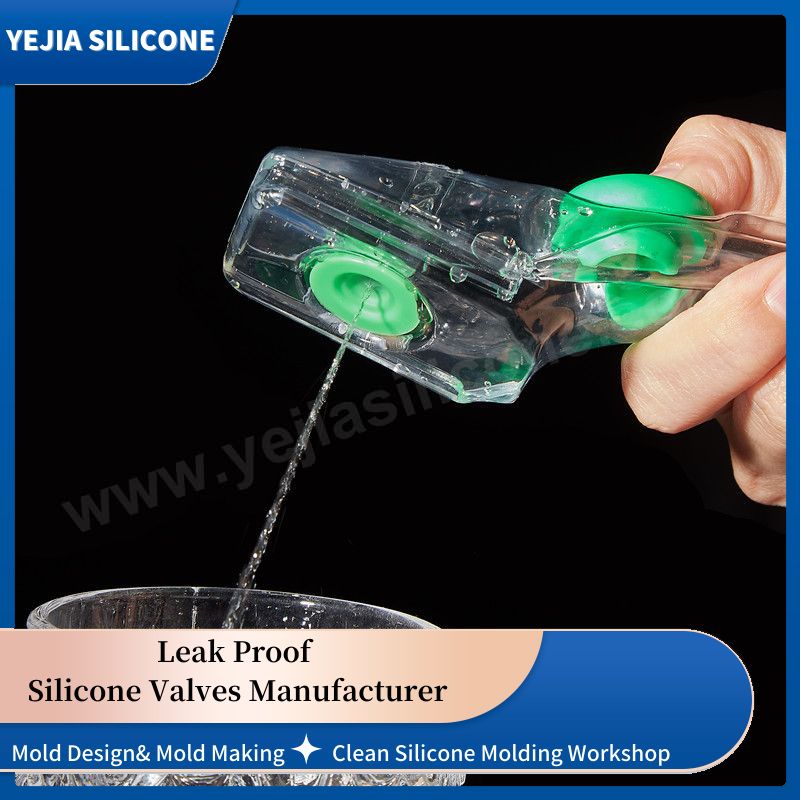

Cross slit valves are widely used in various consumer and industrial sectors where hygienic, precise, and drip-free dispensing is critical.
Main industries include:

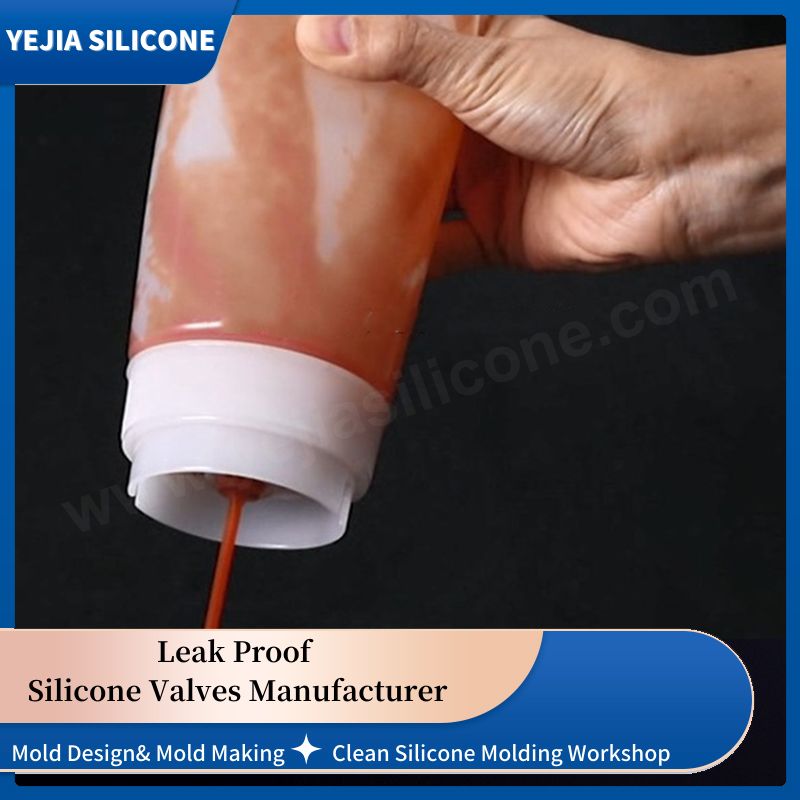

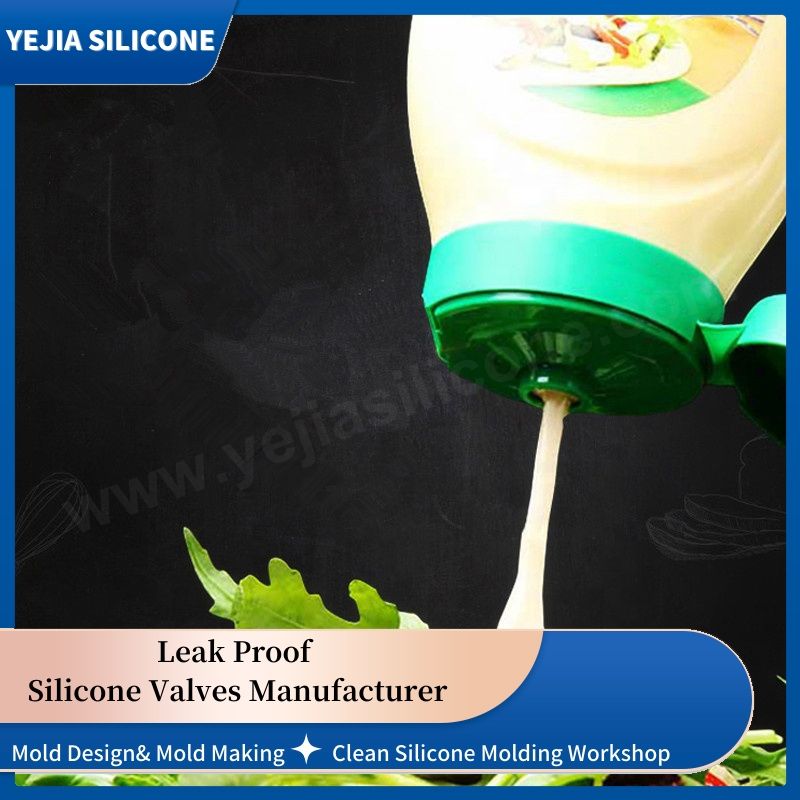

◆ Food and beverage packaging (squeeze bottles, sauces)
◆ Cosmetics and skincare (lotions, gels, shampoos)
◆ Household cleaning (spray and dispenser caps)
◆ Personal care products (hand sanitizers, creams)

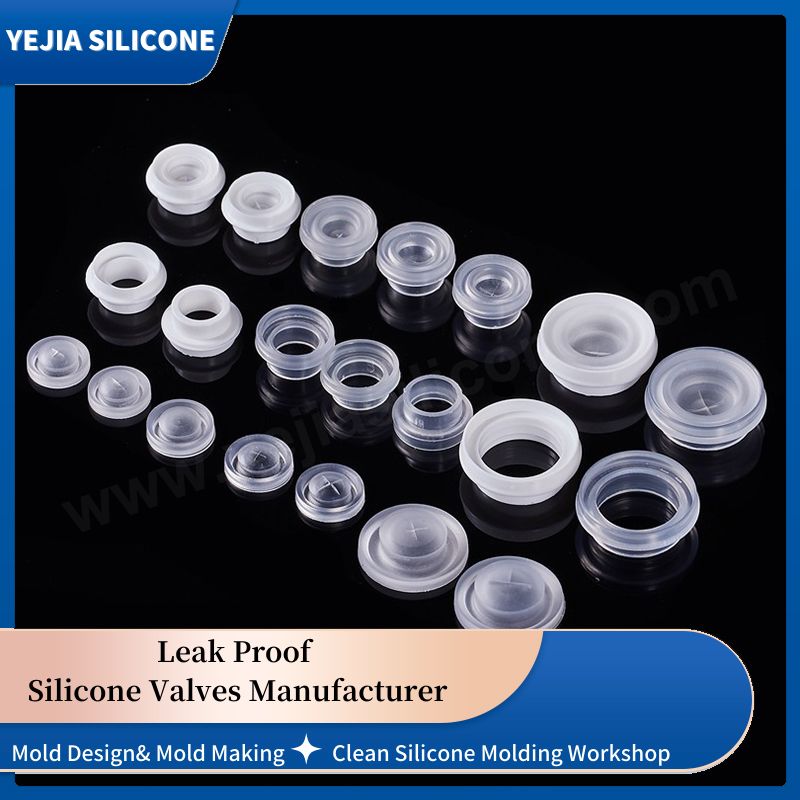

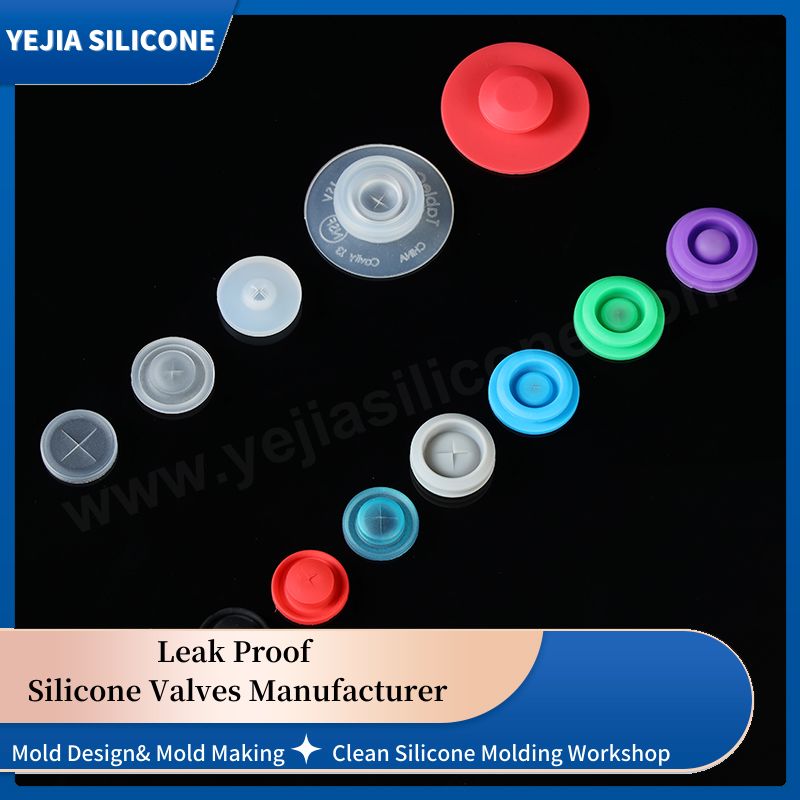

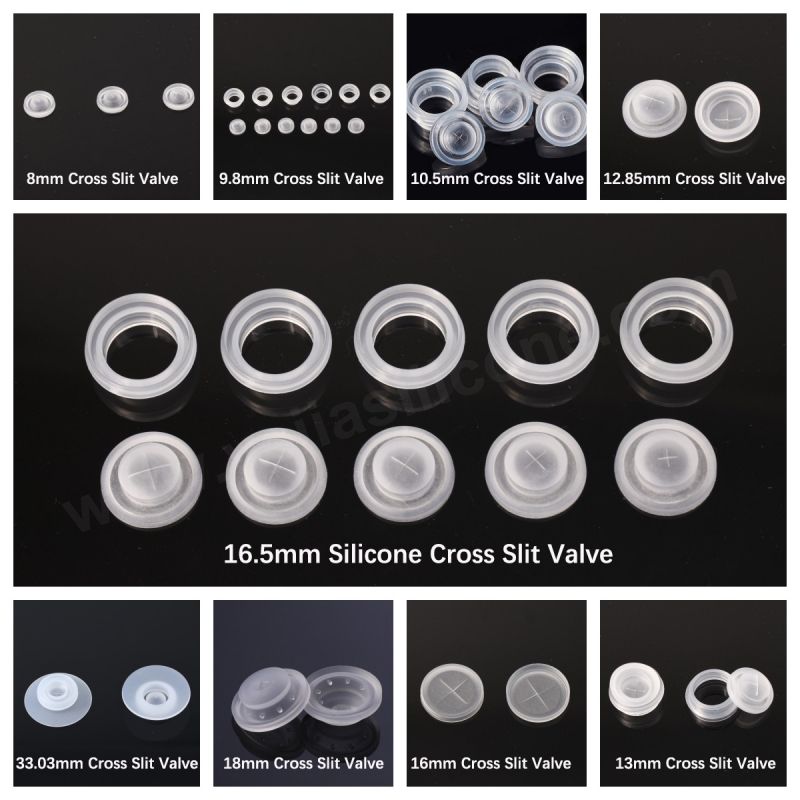

YEJIA Standard Cross Slit Valves
YEJIA offers a wide range of cross slit valves from our existed molds, available in multiple sizes and slit designs to suit various dispensing applications.
Available outer diameters:
| Item Name | Slit Size | Matched PP Ring Outer Diameter |
| 8mm Cross Slit Valve | 1.5*1.5/ 2*2/ 3*3mm | N.A. |
| 9.8mm Silicone Valve | 1.7*1.7/ 3*3/ 3.3*3.3/ 5*5mm | 11.85mm, 12.3mm |
| 10.5mm Cross Slit Valve | 1.7*1.7/ 3*3/ 5*5mm | 12.3mm |
| 12.85mm Cross Slit Valve | 6.5*6.5mm | 14.6mm |
| 13mm Cross Slit Valve | 5.5*5.5mm | 14.6mm |
| 16mm Cross Slit Valve | 11*11mm | N.A. |
| 16.5mm Cross Slit Valve | 3*3/ 5*5/ 5.5*5.5/ 6.5*6.5/ 7.8*7.8mm | 18.7mm |
| 18mm Cross Slit Valve | 7.5*7.5mm | N.A. |
| 33.03mm Cross Slit Valve | 5.5*5.5mm | N.A. |
Slit styles include:
Traditional cross slit
Snowflake pattern

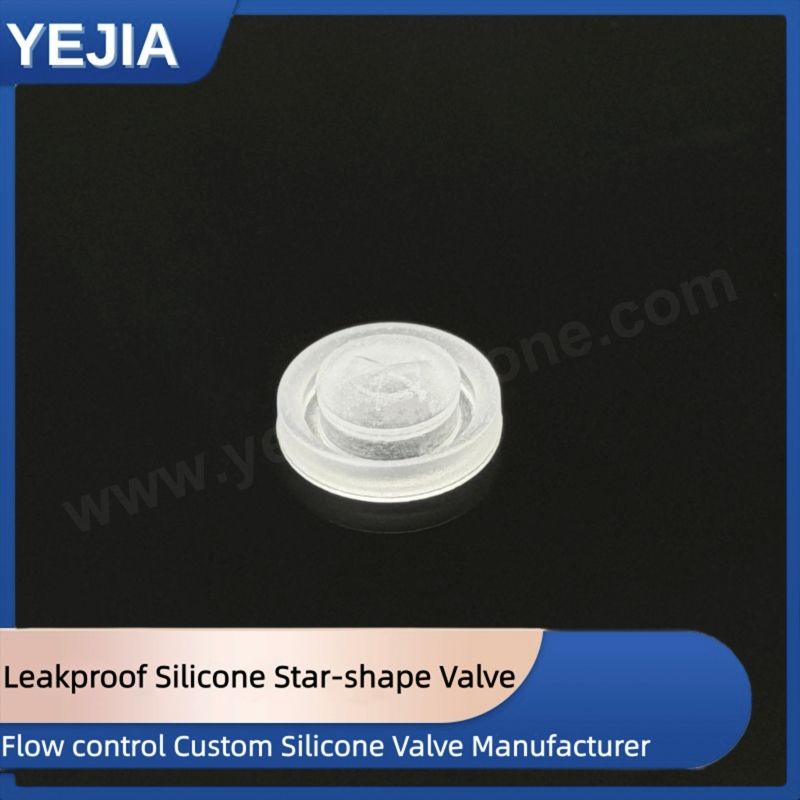

Asterisk/star (*-shaped)
Y-shaped
Each slit design and dimension is carefully engineered to match different requirements for fluid viscosity, dispensing volume, and actuation pressure.
We also provide customized valve solutions for global brand clients. If you require tailor-made designs, please contact us for support.
Manufacturing Process at YEJIA
YEJIA cross slit valves are manufactured with high-quality liquid silicone rubber (LSR) and precision LSR injection molding processes.

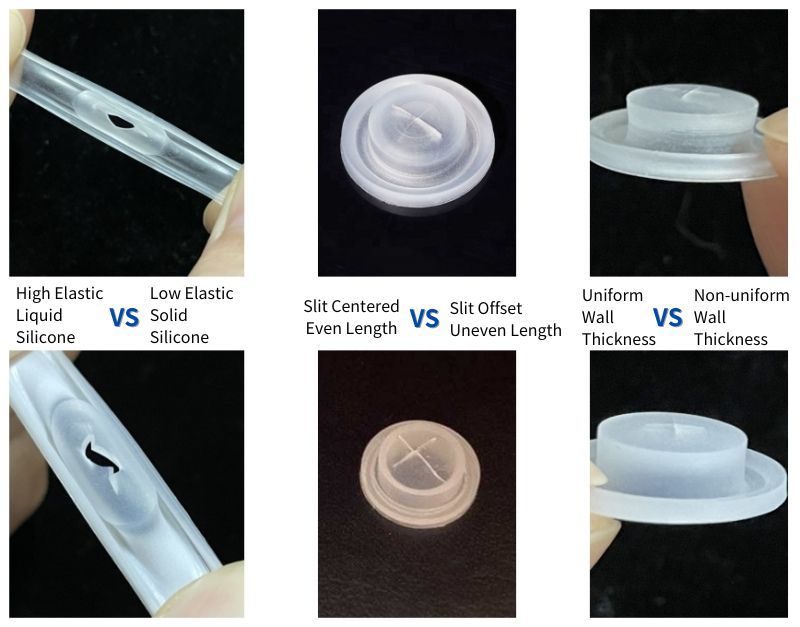

Key features of our production:
1. Material Quality: Food-grade LSR with high tensile strength and excellent elasticity; no whitening after stretching.
2. Mold Precision: Advanced mold design with multi-zone material injection ensures consistent wall thickness on top and side areas.
3. Automated Slit Cutting& Punching: In-house developed automatic punching equipment improves dimensional consistency and reduces manual errors.
4. Full AOI Inspection: All valves undergo 100% Automated Optical Inspection (AOI) for slit accuracy, diameter, and visual appearance to guarantee high consistency and performance.
Why Choose YEJIA Cross Slit Valves?
◇ Multiple ready-made mold sizes – Save development cost and time
◇ Custom designs available – For unique product requirements
◇ Food- & medical-grade materials – Certified and safe for critical applications
◇ Stable performance – Accurate slit actuation, leak-free sealing
◇ High precision & consistency – Controlled by automated LSR and AOI systems
◇ Experience with global brands – Trusted silicone valve supplier for OEMs and big brands
FAQ – Frequently Asked Questions
| Q1: What slit type should I choose for different liquid types? A: For thin liquids, smaller and tighter slits (like cross or Y-slit) work best. For thicker substances, larger or multi-slitted designs like snowflake or asterisk slits are recommended. |
| Q2: Can I request a custom cross slit valve with my own size or design? A: Yes, YEJIA specializes in custom silicone valve development and can produce tooling based on your requirements. |
| Q3: Are your valves safe for food contact? A: Absolutely. We use certified food-grade liquid silicone rubber that meets FDA and LFGB standards. |
| Q4: How do you ensure quality consistency? A: We use high precision LSR injection molding, automatic punching processes, and 100% AOI full inspection to maintain high consistency in every batch. |
| Q5: What's the lead time for mass production? A: For standard sizes, lead time is typically 7–10 days. Custom projects may vary depending on tooling and validation. |
Get In Touch with YEJIA
At YEJIA, we are committed to delivering high-precision, reliable, and hygienic silicone valve solutions that meet the diverse needs of our global clients. Whether you need standard sizes from our open molds or custom-designed cross slit valves tailored to your unique packaging or dispensing requirements, our experienced engineering and manufacturing teams are here to support you every step of the way.
Contact us today to request a sample, get a free quote, or discuss your next project.
Let YEJIA be your trusted partner for high-quality silicone rubber components.
