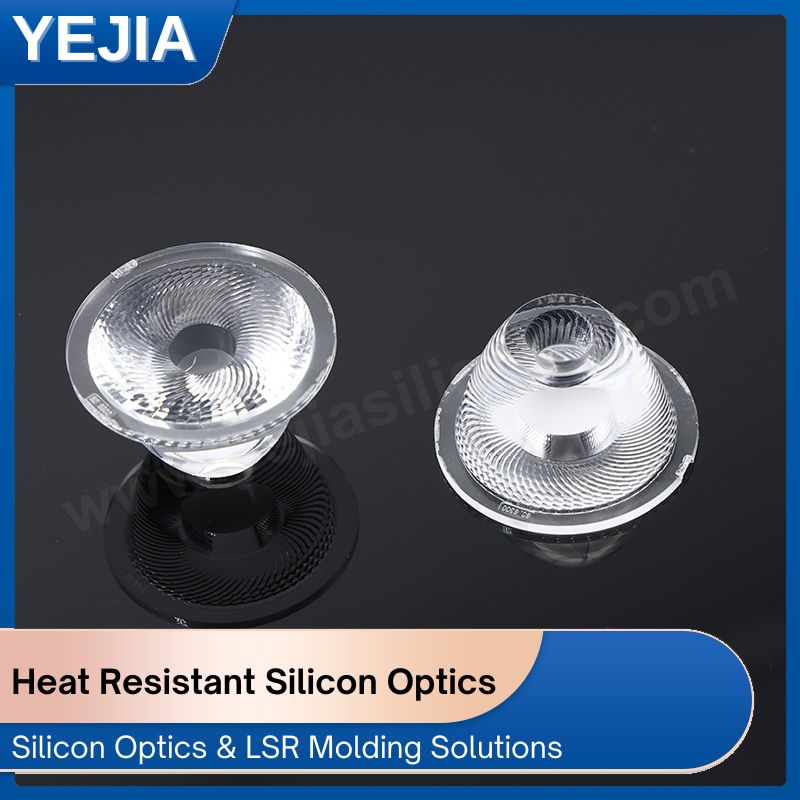

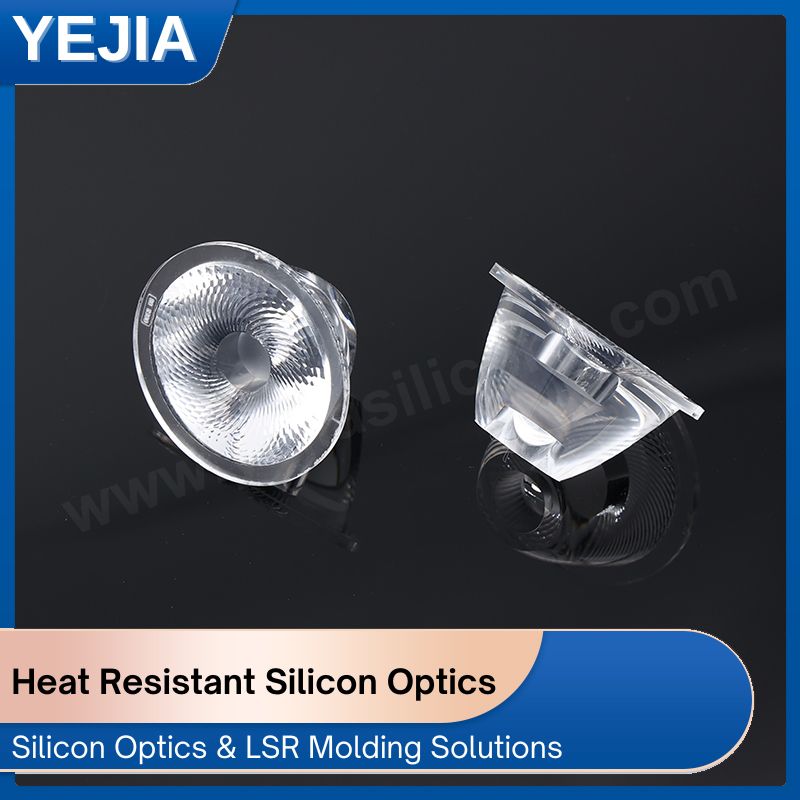

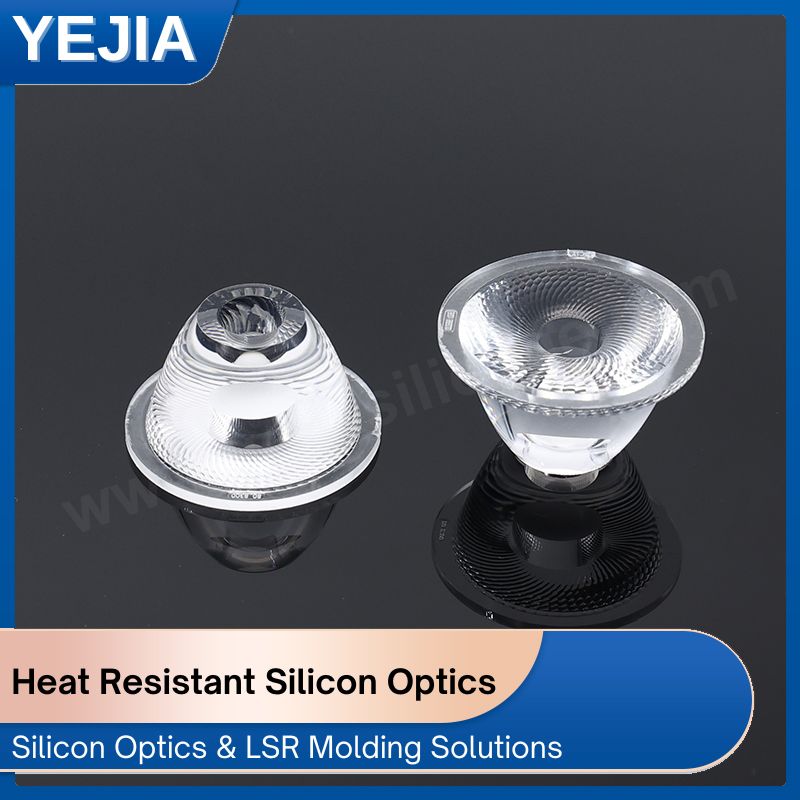

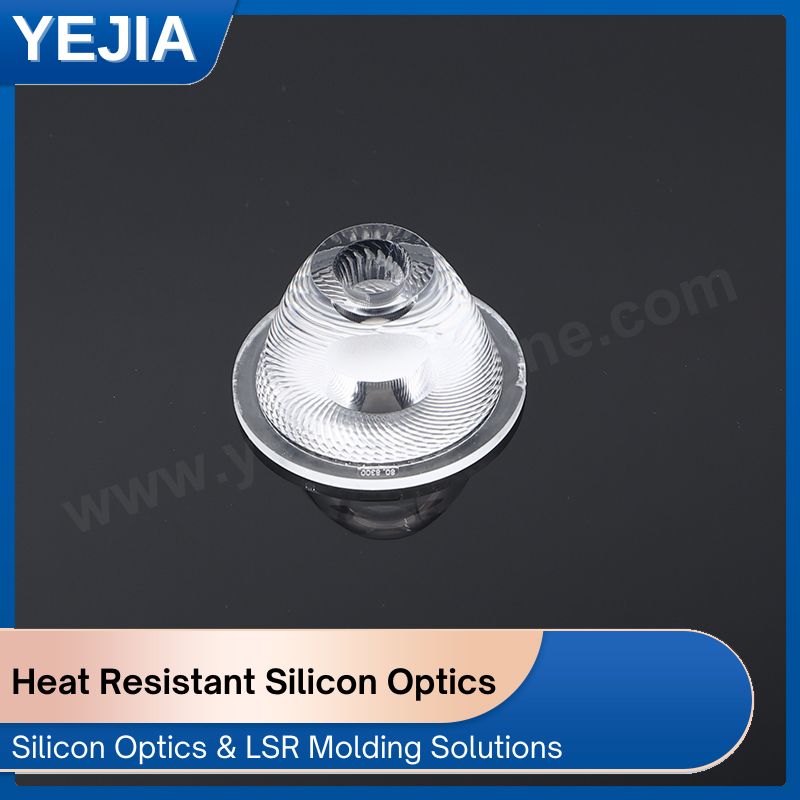

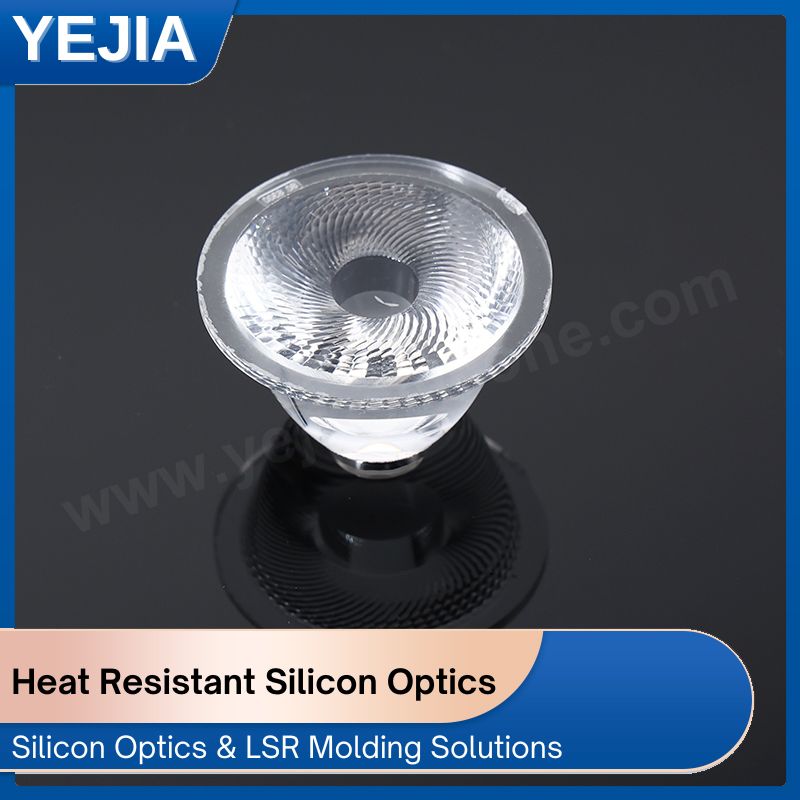

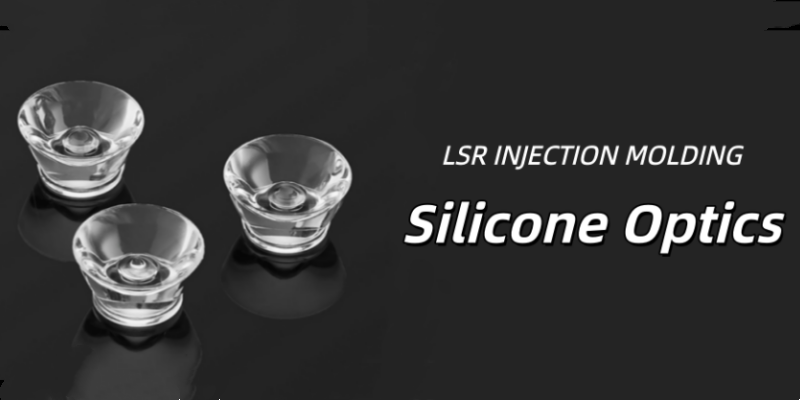

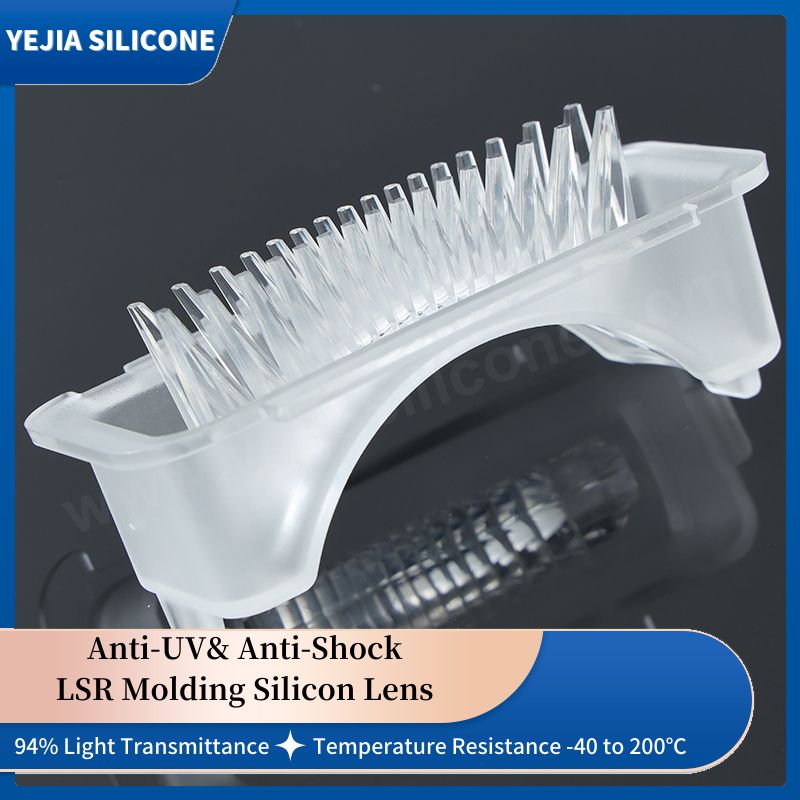

TIR Silicone Optics: High-Performance Optical Solutions for LED Lightings

TIR (Total Internal Reflection) silicone optics are advanced optical components engineered to meet the demanding requirements of modern lighting systems. Manufactured from optical-grade liquid silicone rubber (LSR) and produced through high-precision LSR injection molding, these optics deliver outstanding light control and efficiency.

Compared with traditional plastic optics, TIR silicone optics offer superior optical clarity, excellent thermal stability, and long-term durability, even under high-power LED operating conditions. Their lightweight structure, UV resistance, and resistance to yellowing make them particularly well-suited for applications requiring consistent performance over extended service life.

Thanks to these advantages, TIR silicone optics are widely used in LED general lighting, automotive headlamps, medical and surgical lighting, and other specialty optical applications, where precision beam shaping and reliability are critical.

Product Information

Applications of TIR Silicone Optics

• Automotive Lighting

Used in headlamp lenses and adaptive lighting systems, enabling precise beam control, high thermal stability, and long-term reliability under harsh operating conditions.

• LED Optics

Ideal as secondary optics for high-power LEDs, including applications in street lighting, architectural illumination, and stage or entertainment lighting, where efficiency and beam uniformity are critical.

• Medical & Biomedical Illumination

Applied in surgical lighting, endoscopic devices, and dental illumination systems, offering high optical clarity, resistance to sterilization processes, and stable light output.

• UV & IR Optics

Suitable for ultraviolet sterilization lamps, infrared sensing devices, and security or surveillance applications, benefiting from silicone’s excellent UV/IR transmission and aging resistance.

• Specialized Industrial Lighting

Used as optical elements in hazardous or extreme environments, where resistance to heat, chemicals, and mechanical stress is required.

Key Advantages of TIR Silicone Optics

1. Superior Optical Performance

• High Light Transmittance

With up to 94% light transmittance, TIR silicone optics maximize illumination efficiency while minimizing optical losses.

•   Low Refractive Index (≈1.41)

The low refractive index reduces light distortion and improves optical efficiency in high-performance lighting systems.

•  Enhanced Light Control

Total Internal Reflection (TIR) design enables precise beam shaping, minimizing glare and ensuring uniform light distribution.

2. Exceptional Heat Resistance

• Capable of withstanding continuous operating temperatures up to 150 °C, making them ideal for high-power LEDs, automotive lighting, and outdoor applications.

• Maintains optical and mechanical stability under thermal conditions where conventional plastics such as PMMA or PC may warp, yellow, or degrade.

3. UV Resistance & Anti-Yellowing

• Silicone materials resist UV-induced aging and do not yellow over time, ensuring long-term optical clarity.

• Particularly suitable for UV-curing systems, horticultural lighting, and prolonged outdoor exposure.




4. Lightweight & Durable

• Low density (1.05–1.08 g/cm³) supports lightweight optical designs without sacrificing structural integrity.

• Inherently shock-resistant and flame-retardant, enhancing safety and service life.

5. Environmental Resistance

• Excellent resistance to environmental pollutants, moisture, and harsh operating conditions.







• Ideal for industrial, outdoor, and demanding environments requiring long-term reliability.

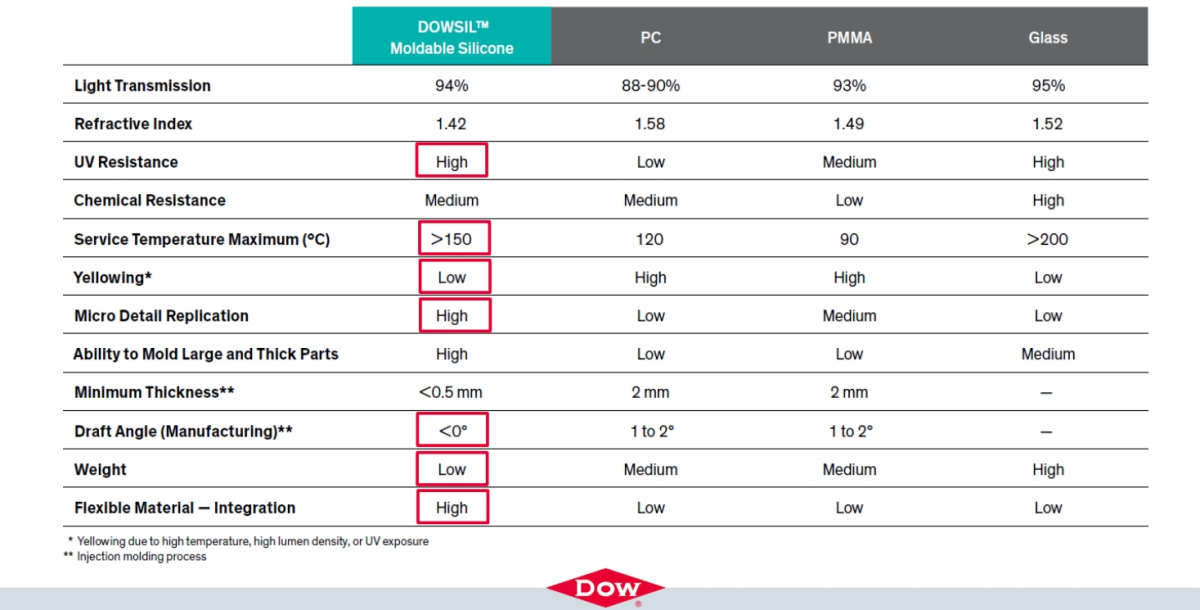

Optical Performance Comparison of Silicone, PC, PMMA and Glass

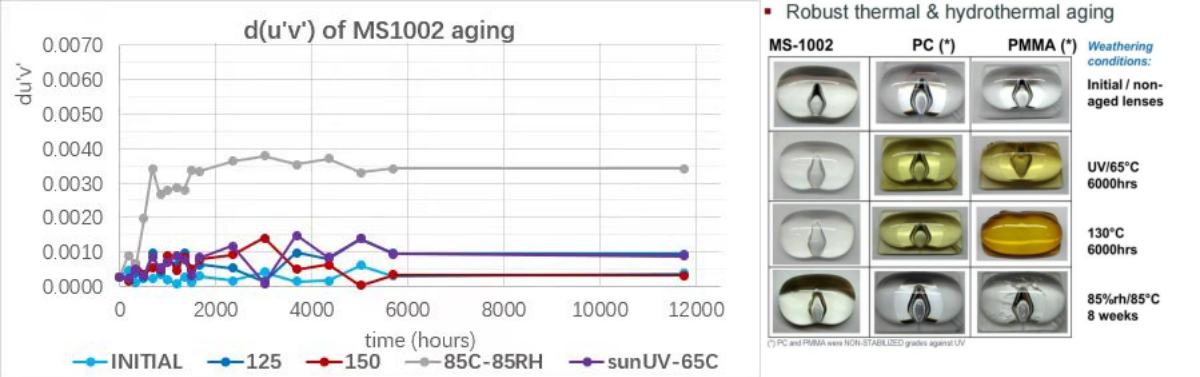

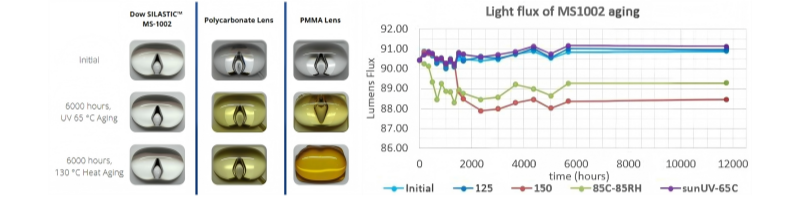

UV Resistant Testing for Optical Liquid Silicone Dow Corning MS1002

YEJIA: Your Trusted Partner in Silicone Optics Manufacturing

At YEJIA, we specialize in the design and manufacturing of high-precision custom silicone optics for a wide range of industries. By combining deep materials expertise with advanced production technologies, we deliver optical solutions that meet the most stringent requirements for performance, consistency, and reliability.

Why Choose YEJIA for Your Optical Silicone Needs?

• Advanced Mold-Making Technology

We utilize state-of-the-art mold design and fabrication techniques to achieve ultra-precise optical geometries, fine surface finishes, and complex microstructures.

• High-End Manufacturing Equipment

Our production facility is equipped with imported Arburg LSR injection molding machines, ensuring excellent repeatability, tight tolerances, and superior optical surface quality.

• Cleanroom Production Environment

All optical components are manufactured in a Class 100,000 cleanroom, guaranteeing contamination-free processing and high-purity optical performance.

• Proven Industry Experience

YEJIA silicone optics have been successfully applied in automotive headlamp systems, high-power LED modules, medical lighting, and specialty illumination projects worldwide.

• Customized Optical Solutions

We offer fully customized designs tailored to customer specifications, including beam-shaping optics, lens arrays, collimators, and freeform optical components.

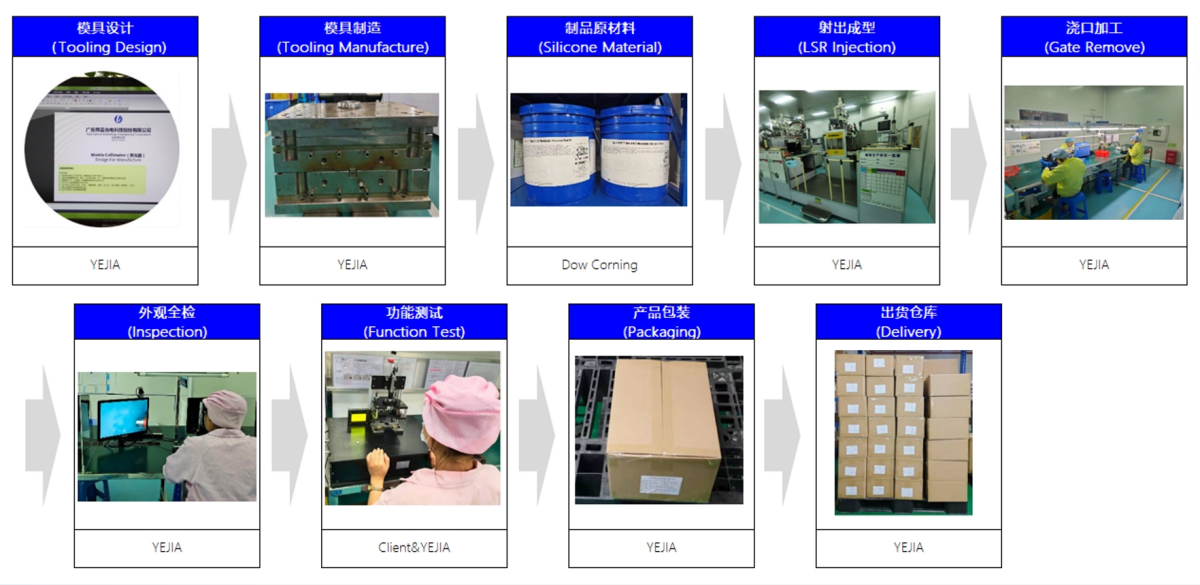

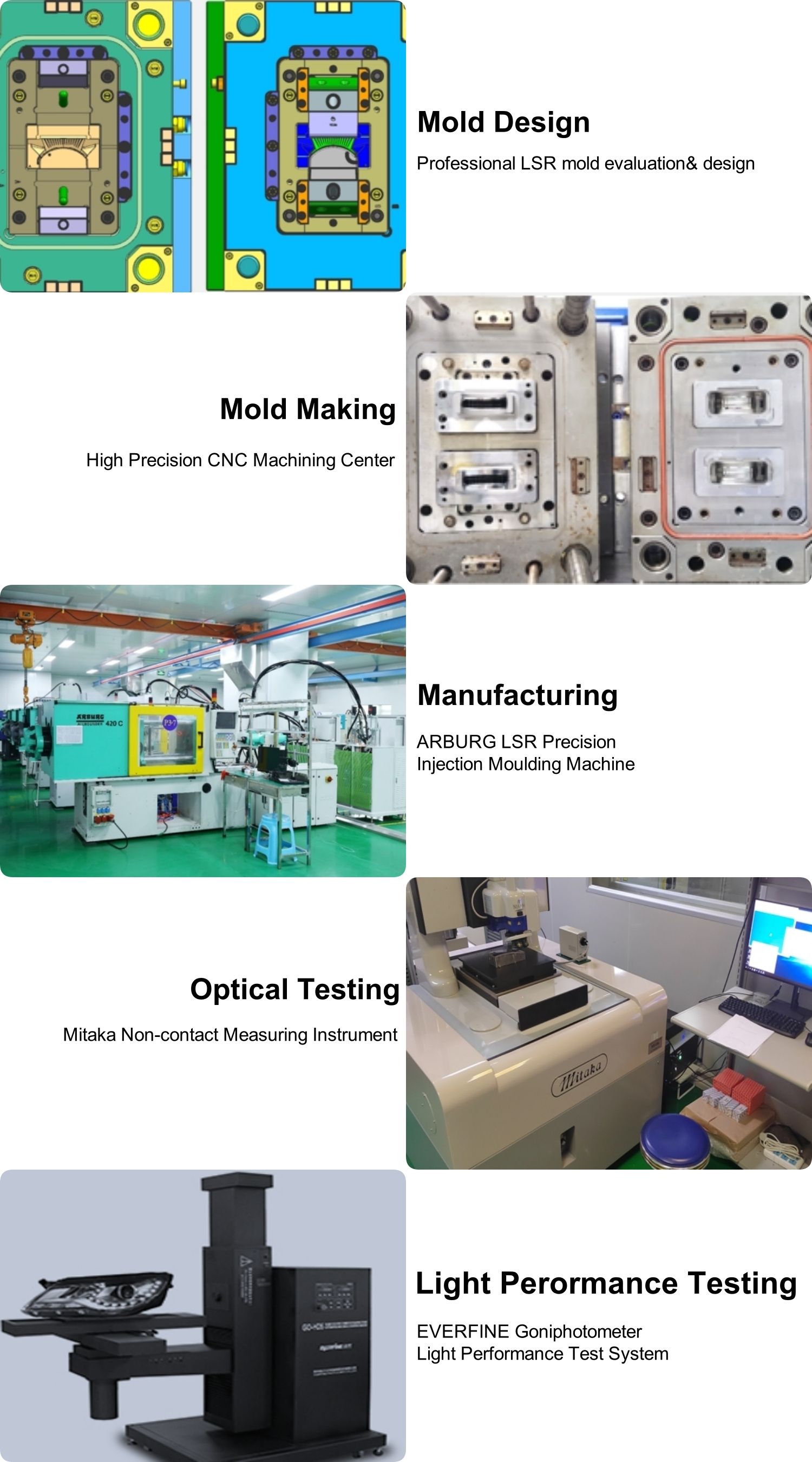

Production Process of Heat-Resistant LSR Molded Silicone Optics

For customized silicone optics, YEJIA follows a well-controlled and proven manufacturing process to ensure consistent quality, precision, and performance.

If you are looking for high-quality, custom-designed TIR silicone optics, YEJIA is your trusted manufacturing partner. With comprehensive expertise in optical design, mold making, and LSR injection molding, we deliver solutions precisely tailored to your optical, mechanical, and thermal requirements.

Contact YEJIA to discuss your project and experience the advantages of precision-engineered silicone optics.
