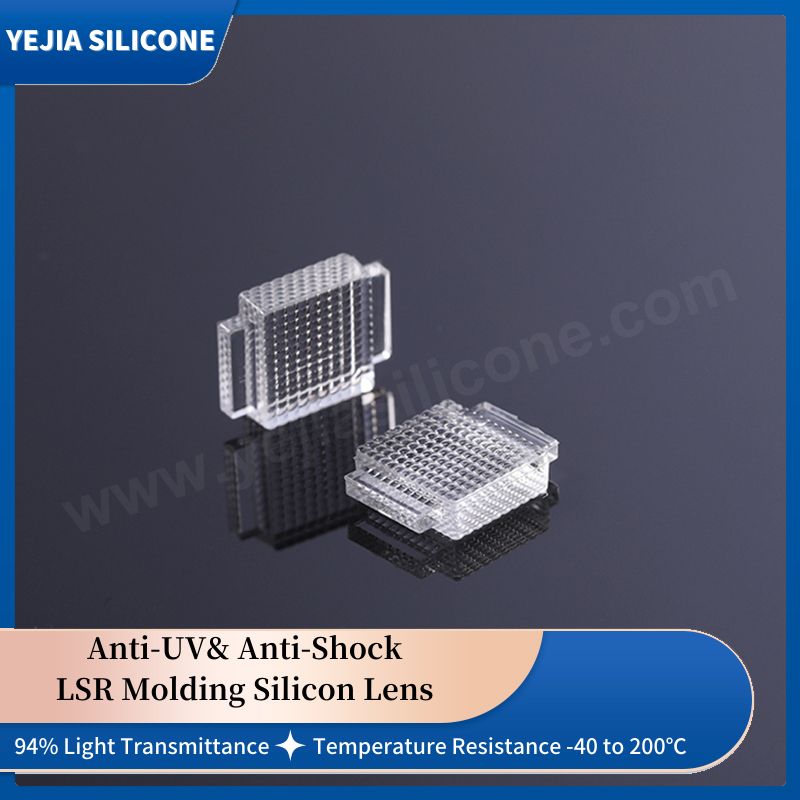

Silicon Fly-eye Lens

  • 1. Model No: YJ-93

  • 2. Material: Optical Liquid Silicone

  • 3. Process: Liquid Injection Molding

  • 4. Mold Making: In-house high precision molding making equipment

  • 5. Production: Arburg horizontal LSR injection molding machines

  • 6. Workshop: Class 100,000 clean production workshop

  • 7. MOQ: 3000pcs

Product Description

Liquid Injection Molding Silicone Fly Eye Lens, Optical Liquid Silicon Fly-eye Lens China Supplier

Experienced in liquid injection molding and overmolding, our factory is able to produce various custom optical lenses made of liquid silicone, such as, TIR lens, silicone matrix lens, silicon linear lens, LSR fly-eye lens, silicon concave lens, silicone convex lens and many other LED optical lenses.

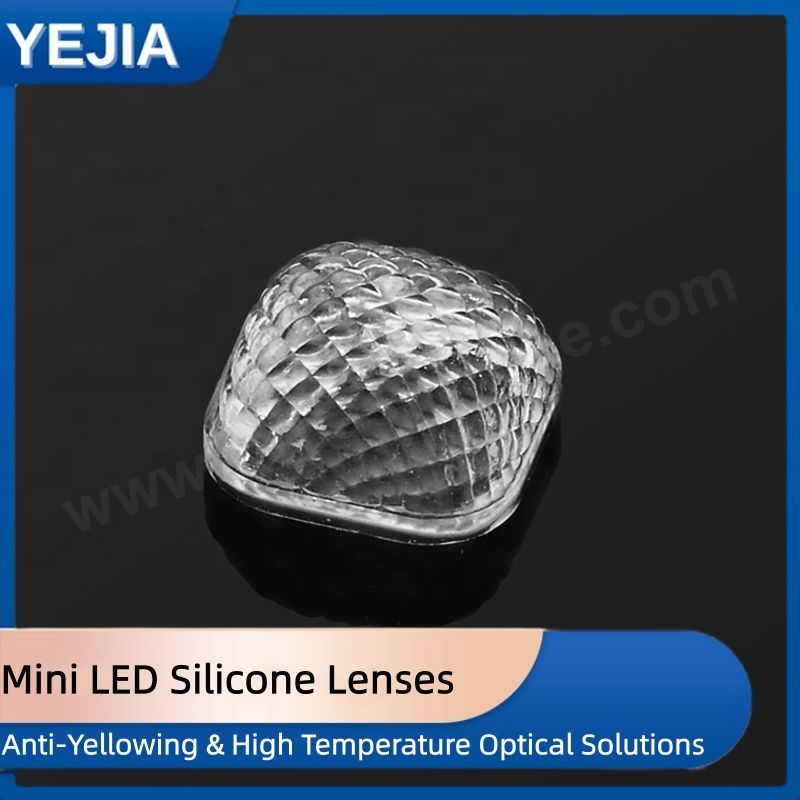

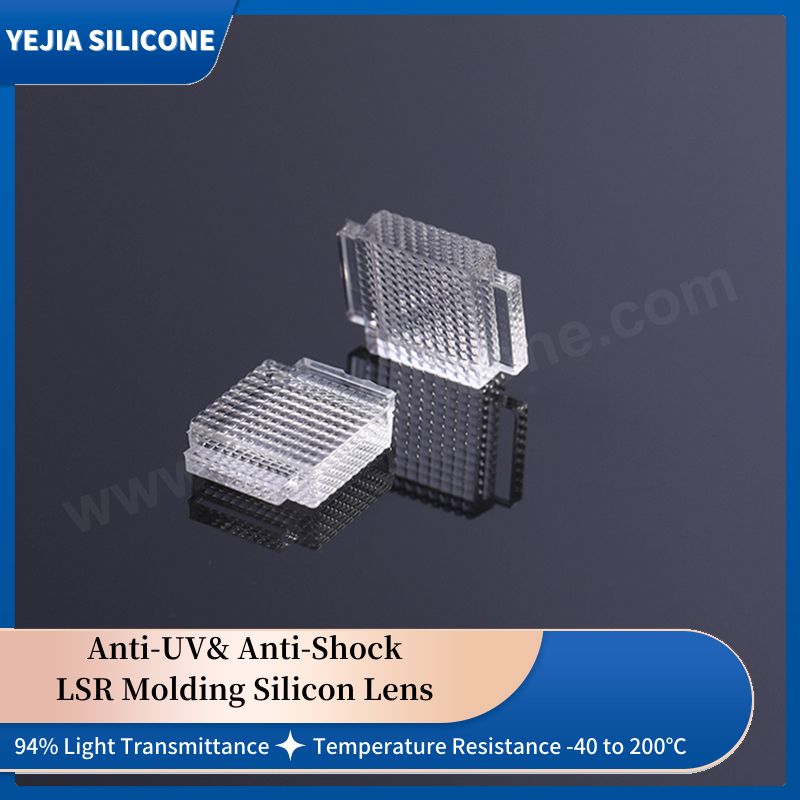

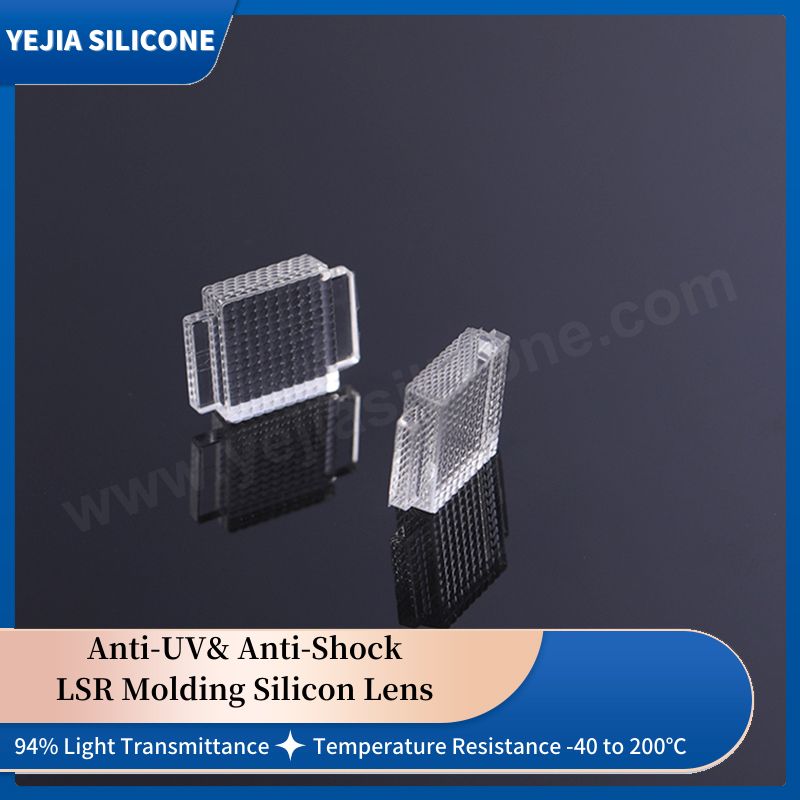

Silicon Fly-eye Lens

Product Specification

The silicon fly-eye lens is placed inside the machine for use in the light path system and is an important part of the reflective equipment. It is also a very useful optical element in the lighting system, which can be used to generate a uniform irradiance distribution. The silicon fly-eye lens is an integrated arrangement of multiple small lenses, and the two fly-eye arrays are arranged in parallel so that the transmitted light is evenly distributed. The key to achieving uniform illumination using a double-row fly-eye lens array is to improve its uniformity and illumination brightness.


Item No.: YJ-93
Item Name: Silicon Fly Eye Lens
Material: Dow Corning MS1002
Hardness: 72 Shore A
Color: Crystal Clear
Light Transmittance: 94%
Refractive Rate1.41
Temperature Resistance-40 to 200℃
UV ResistanceDouble 85 Aging Test, 3000 hours, no changing
Process: LSR Injection Molding- Inspection- Deflashing- Inspection- Packing- Delivering

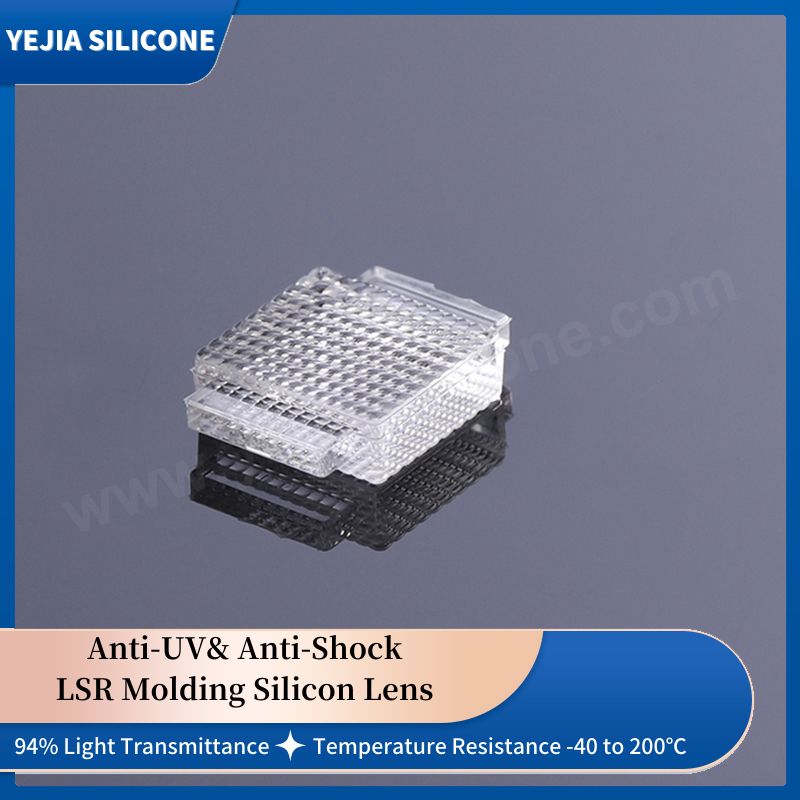

Silicon Fly-eye Lens

How does a LSR fly-eye lens achieve uniform illumination?

If we want to see a moving or still picture through the projector, we need the picture to be evenly illuminated and presented on the screen. Therefore, in order to achieve uniform illumination, the spatial light modulator needs to be uniformly illuminated. Normally, the illuminance distribution of the light source is Gaussian, so it is not possible to illuminate the spatial light modulator directly and uniformly. We have to "De-Gaussianize" the illuminance distribution and change it to a uniform distribution.

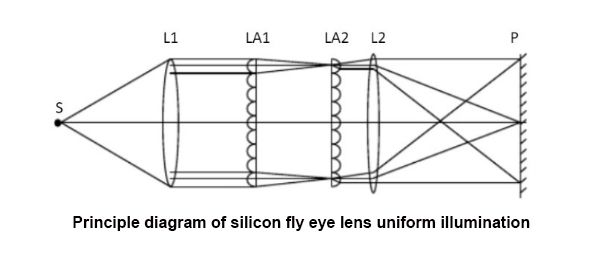

The silicon fly-eye lens arrays usually occur in pairs and work together with the spotting mirrors to provide a uniform distribution of the illumination plane. The focal point of each small unit lens in the first fly-eye lens array coincides with the center of the corresponding small unit lens in the second fly-eye lens array, and the optical axes of the two fly-eye lenses are parallel to each other, and the spotting mirror is placed after the second fly-eye lens, and the focal plane of the spotting mirror is placed on the illumination screen to form a uniform illumination system.

Silicon Fly-eye Lens

Advantages of Silicon Fly-Eye Lens

1. High Light Transmittance


The silicon fly eye-lenses can achieve to 92% to 94% light transmittance, without surface coating.

2. Temperature Resistance


The silicone material is flame resistance, and the temperature resistance vary from -40 to over 200 Celsius degrees.

3. Anti-yellowing


After double 85 tests, 5000 hours, the silicon fly-eye lens has no changing.

4. Cost Effective


Comparing to glass fly-eye lens, the production costs is way much lower.

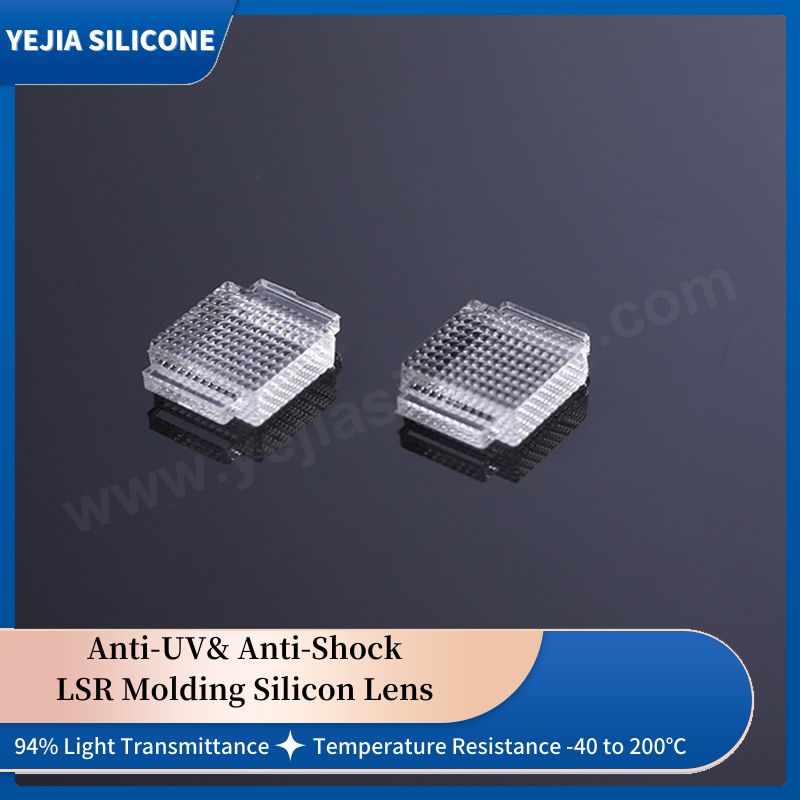

Silicon Fly-eye Lens

Liquid Injection Molding Silicon Fly-Eye Lens Application

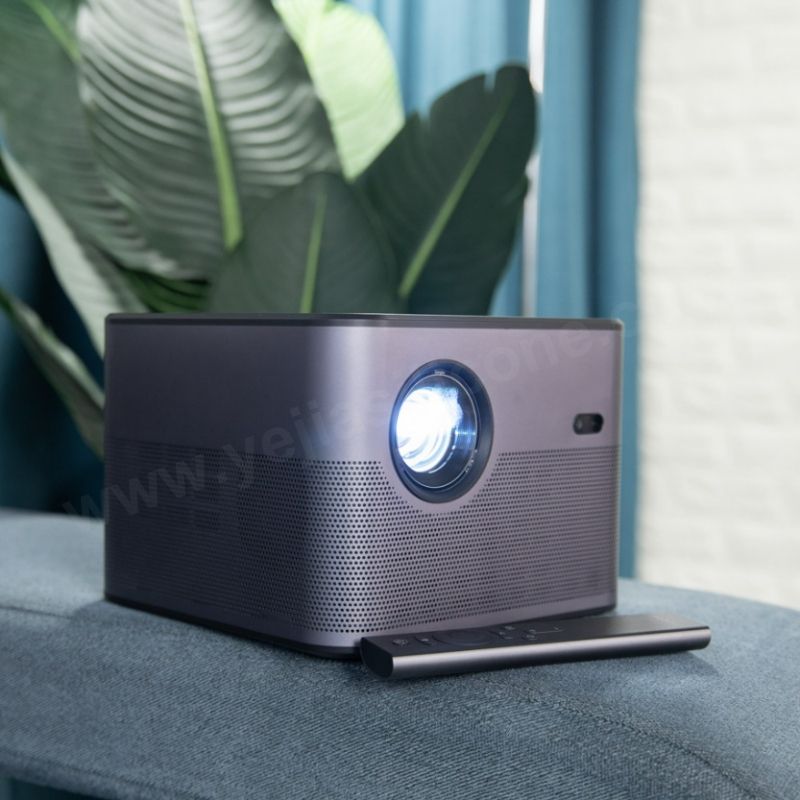

The silicone fly eye lens is used for projectors, with LSR injection molding, for large volumes, the production costs will be much lower than glass fly-eye lens.

Silicon Fly-eye Lens Manufacturer

Optical Properties Comparison

Optical Properties

Dowcorning

MS4002

Silicone

Momentive

LSR7180

Silicone

Wacker

LR7601/80

Silicone

DONESON

DSA-7180

Silicone

PC

PMMA

Glass





Light Transmittance

(%)

94

94

94

94

86-89

89-92

95

Refractive ratio

1.41

1.41

1.41

1.41

1.59

1.49

1.5-1.6

Haze

-

<1

-

-

1-3

2-4

-

Abbe

48

50

50

49-51

34

57

35-59

Yellowness Index

-

<1

-

-

1-3

1-3

-

★ Above values are quoted from material supplier testing data, for reference only.

Silicon Fly-eye Lens

Optical PropertiesWeatherability

Design Flexibility

Comparing to PC or PMMA, the transparency and dispersibility of optical silicone are better.


Light transmittance: 94%

Haze: < 1%

Abbe: 50

Color durability

Under harsh conditions, the optical silicone maintains the optical properties, can meet higher application requirements.


High temperature resistance, even over 150°C

UV resistance

Micro-cracking resistance

Flame resistance, equal to UL 94 V-1

The optical silicone material is with excellent processing properties, especially in LED lighting and optical lenses.


Design flexibility for LED lighting optical parts

High fluidity helps to achieve complex micro-structure designs

Overmolding injection with other materials

Product lightweight design


What's Our Advantage in Producing Silicone Fly-eye Lenses?

Yejia silicone, as the top silicon lens manufacturer in China, has been certified by ISO9001, ISO14001, IATF16949& ISO13485. With our own mold design and mold making team, our engineers can communicate with customers directly to discuss about the product structure, production feasibility, etc.

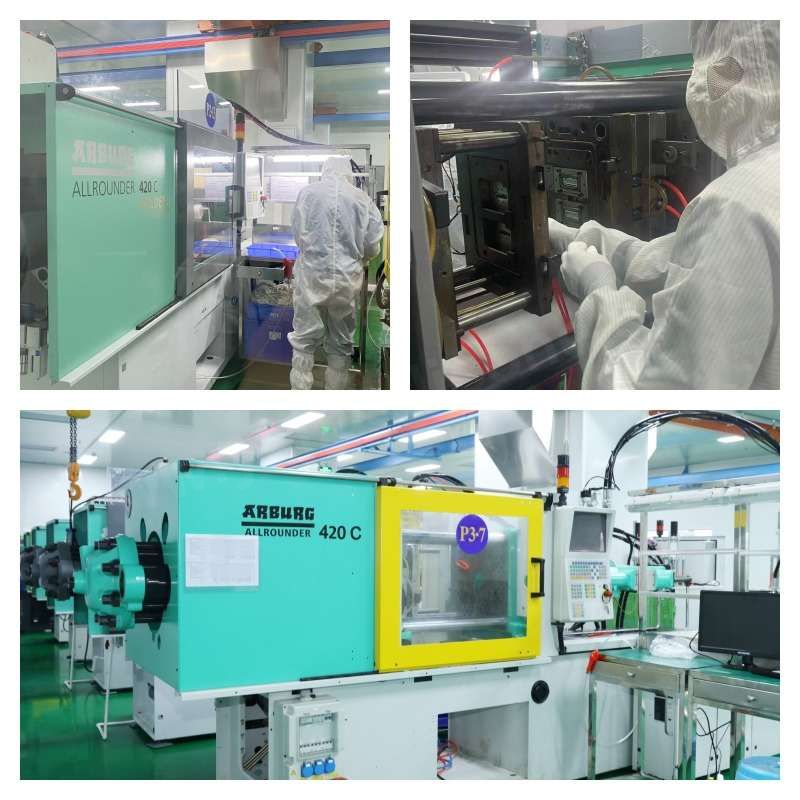

With advanced imported mold making and LSR injection molding production equipment, the product dimensions, roughness and performance can be guaranteed.

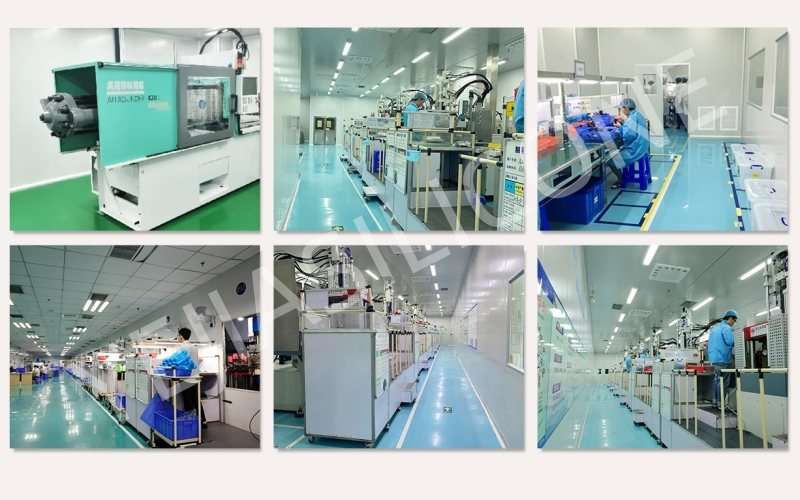

Class100,000 clean optical production workshop, together with class 10,000 light performance inspection room, highly welcome custom optical silicon lens.

Silicon Fly-eye Lens

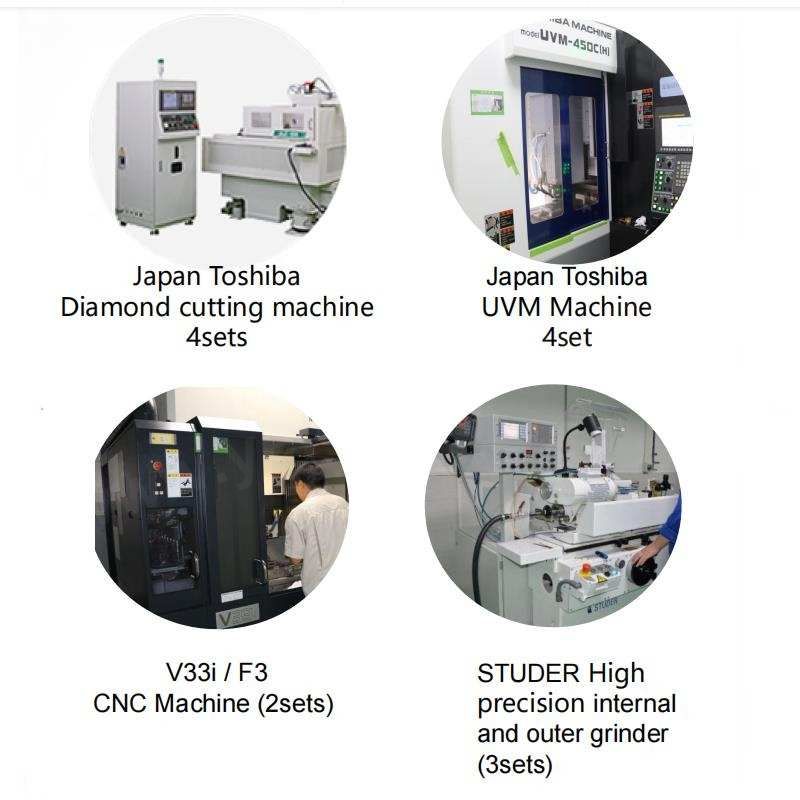

Core Molding Making Equipment List

S.N.

Molding Making Equipment

Origin

Qty.

1

Ultra Precision Aspheric Machine

Japan

4

2

Universal Cylindrical Grinder

Switzerland

3

3

CNC EDM Wire Cutting Machine

Japan

3

4

Precision Form Grinder A

Japan

1

5

Precision Form Grinder B

Japan

1

6

High Precision Surface Grinder

Japan

1

7

High Precision Vertical CNC Machine

Japan

2

8

Vertical CNC Machine

Japan

1

9

Mirror Spark Machine

Japan

1

10

Surface Treatment Equipment

Switzerland

2

11

Polishing Machine

Japan

3

12

Ultra Precision Inner Diameter Processing Machine

Japan

1

13

TATUNG-OKUMA Grinder

Taiwan

1

14

Okamoto Grinder

Japan

1

Silicon Fly-eye Lens

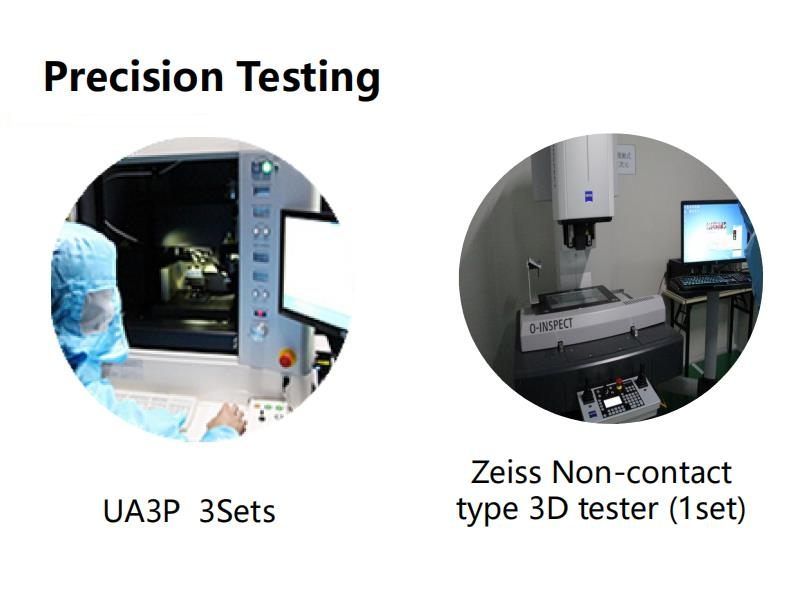

Inspection Equipment List

S.N.

Mold Making& Inspection Equipment

Origin

Qty.

1

2D Measuring Instrument

Japan

1

2

Surface Roughness Tester

Japan

2

3

Three Dimensional Measuring Instrument

Japan

1

4

3D Measuring Machine

Germany

1

5

3D Shape Measuring Machine(UA3P)

Japan

3

6

Stereo microscope

Japan

4

7

Birefringence Measuring Instrument

Japan

1

8

Sphericity Interferometer

Japan

1

9

Altimeter

Japan

4

10

Roundness Tester

Japan

1

11

Integrated Distribution Photometer

P.R.C

1

12

LED Rapid Spectroscopy System

P.R.C

1

13

Light Distribution Performance Tester for Traffic& Vehicle Luminaires

P.R.C

1

14

Optical Property Tester

Germany

1

15

Eccentricity Measuring Instrument

Korea

1

16

UV Visible Spectrophotometer(Transmittance Tester)

Japan

1

17

Optical Transfer Function Measuring Instrument

Germany

3

18

OptiCentric® Centration Measurement

Germany

1

19

NIR Spectrometer

Japan

1

20

PRO9

Germany

6

Silicon Fly-eye Lens

FAQ

Q: What is fly-eye?


Q: The fly-eye is composed of tens of thousands of single eye, just like the eyes of dragonflies and flies. The fly-eye is composed of more than 3,000 small eye units that have their own optical systems, which work both in concert and independently. Therefore, the fly eye not only has high speed and high precision resolution, but also can effectively calculate the orientation and distance between itself and the observed object, which is beneficial to make faster judgments and responses.

Q: Can you design silicon fly eye lens?


A: We regret that we mainly do OEM service, we can't design optical lenses for now.

Q: What shall I offer to custom a silicon fly eye lens?


A: Please offer us 2D and 3D drawings with specific light performance requirements.

Q: What's the lead time to develop a silicon fly-eye lens?


A: For prototyope mold, the lead time is 25- 30 days.

Q: Can I visit your factory?


A: Yes, highly welcome to visit us, contact us to arrange the visiting.
